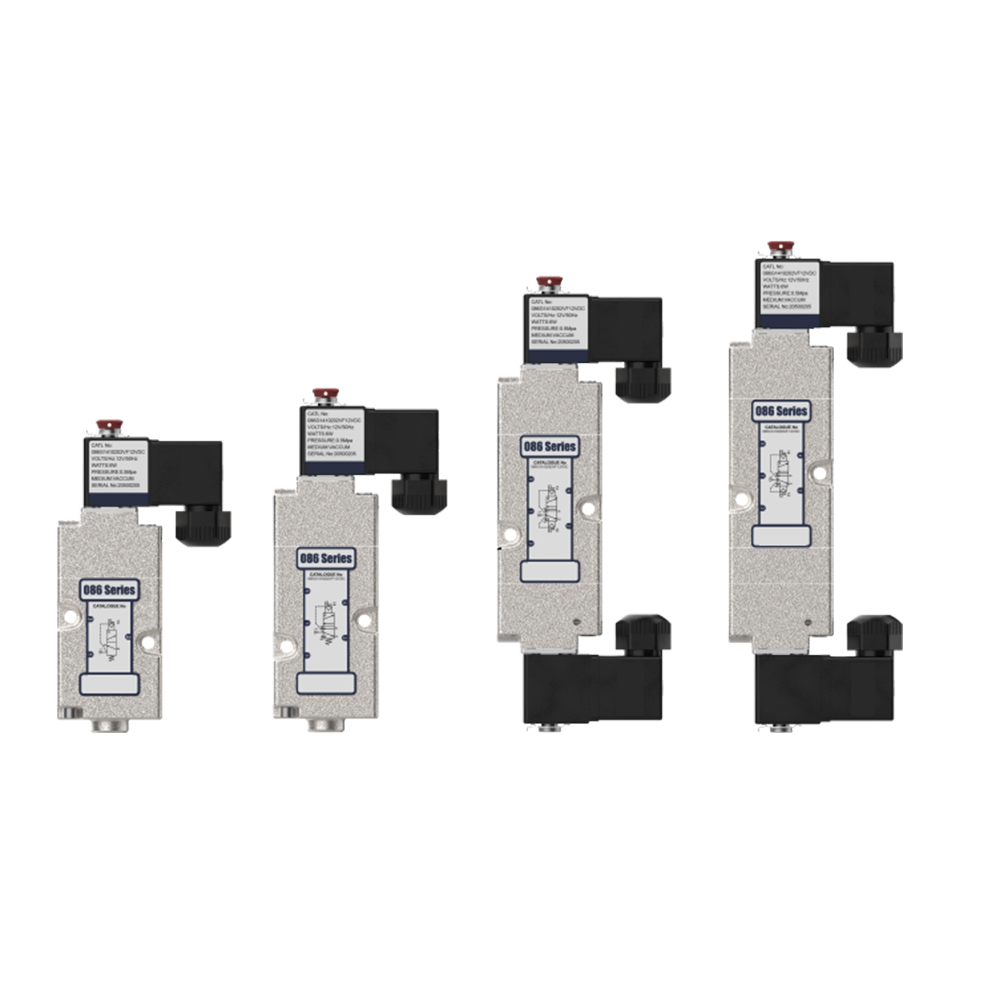

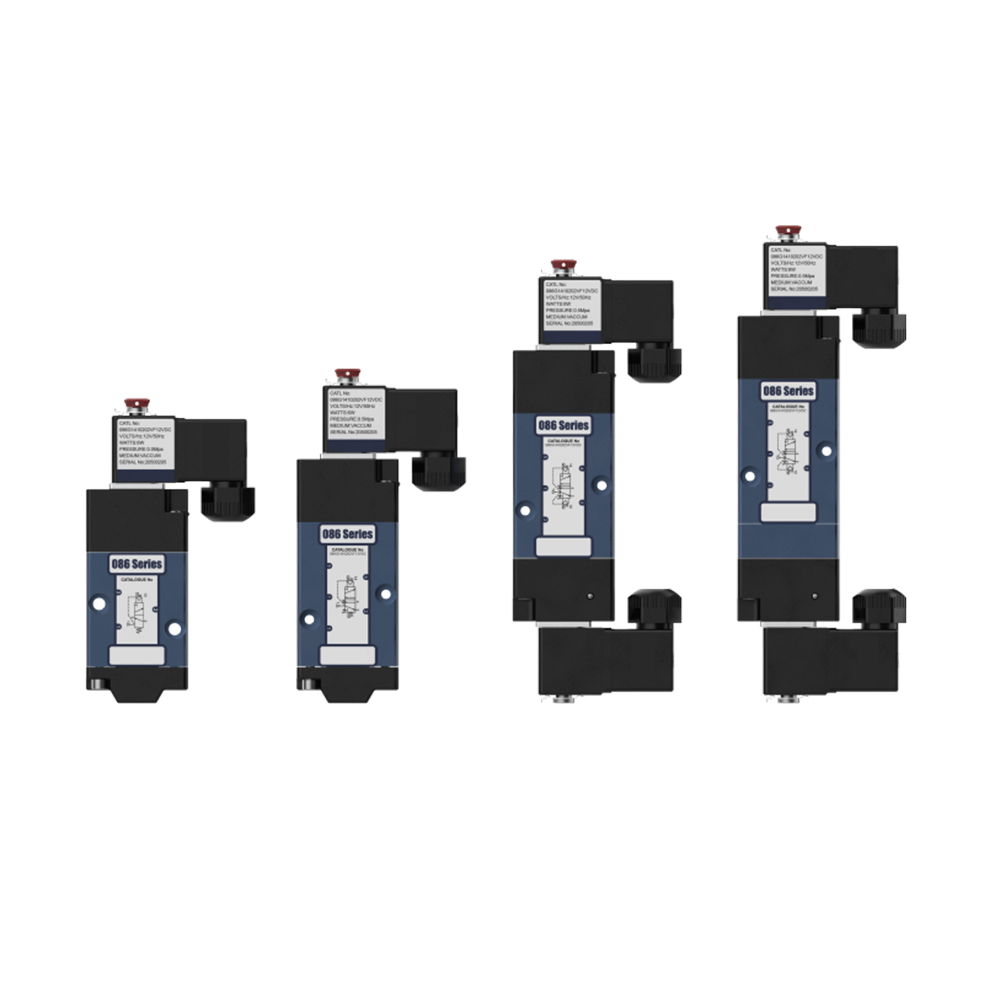

08-6 Non Explosion-proof Pilot-Operated Spool Valve

The 086‑Series pilot‑operated spool valves feature proprietary static‑sealing design with self‑seal compensation and anti‑contamination properties, delivering multi‑million‑cycle operational reliability.

Built for ultra‑long service life, they perform excellently for air and inert gas control within harsh operating conditions.

Offered with anodized‑aluminum or stainless‑steel valve bodies, the 086‑Series covers a wide range of actuator pilot‑control applications. It delivers stable performance in demanding environments such as chemical processing, oil refining, food & beverage, and life‑science manufacturing.

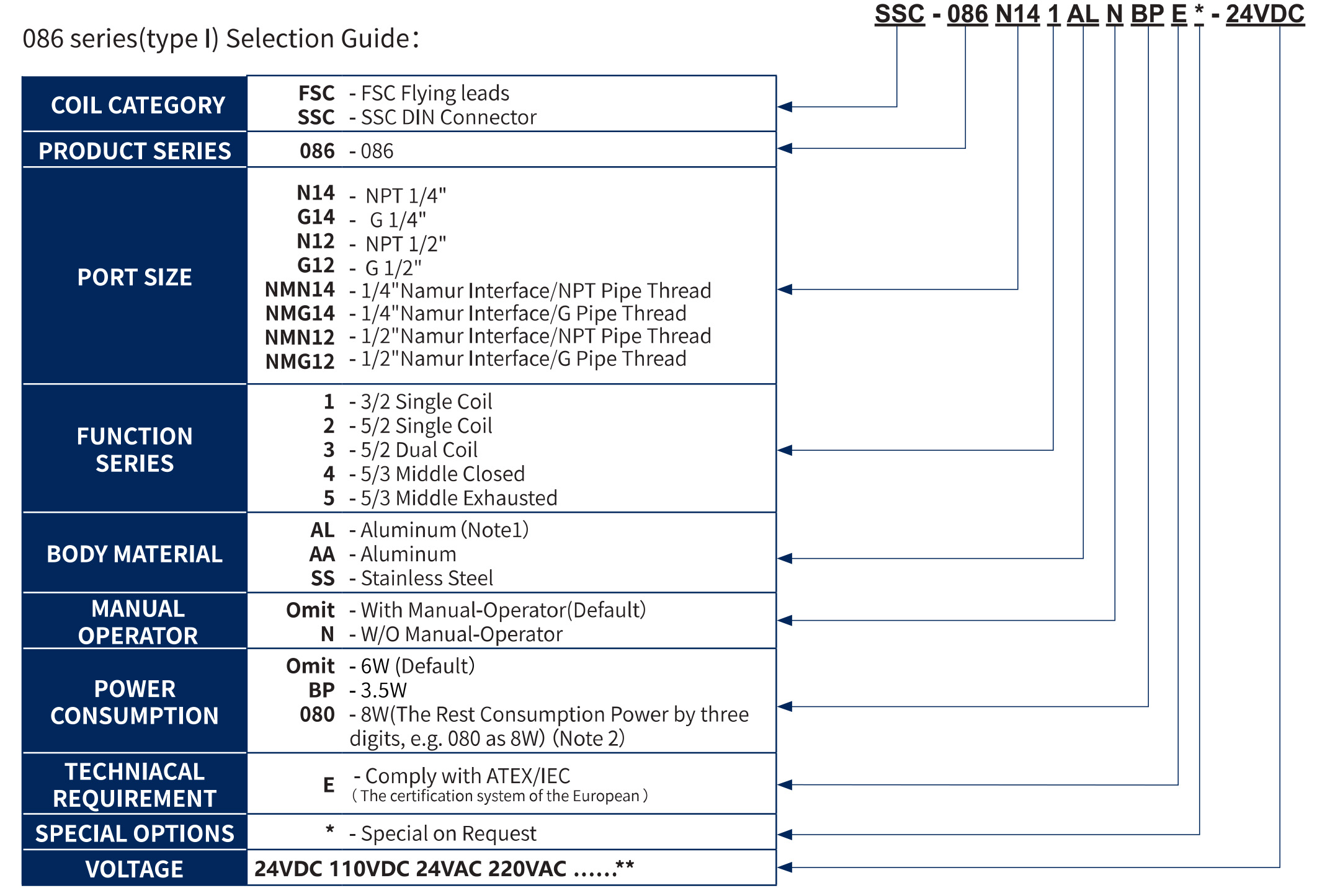

ORDERING GUIDE

Note 1: PBT-GF30 Pilot Body End-cap (>-25°C)
*Special options are available upon the requirement.
**ATEX/IEC certified is only available for 24VDC, 220VAC.

FEATURES AND BENEFITS

• The valves are certified according to IEC 615o8 functional safety data and have SIL-3 capability (TUV)
• Unique static sealing compensation design
• Available in single and dual solenoid constructions
• External and internal pilot are optional
• Can be mounted in any position.
• Available in explosion-proof & non-explosion-proof operators
• Available in low power consumption types
• Coils have class H insulation material
• Available in manual-operator and w/o manual-operator
• Threaded port connection and NAMUR connection are optional

MATERIALS

GENERAL

APPLICATIONS

• Actuation Control
• Redundant System
• Pneumatic Systems
• Safety Control
• Automation Control
