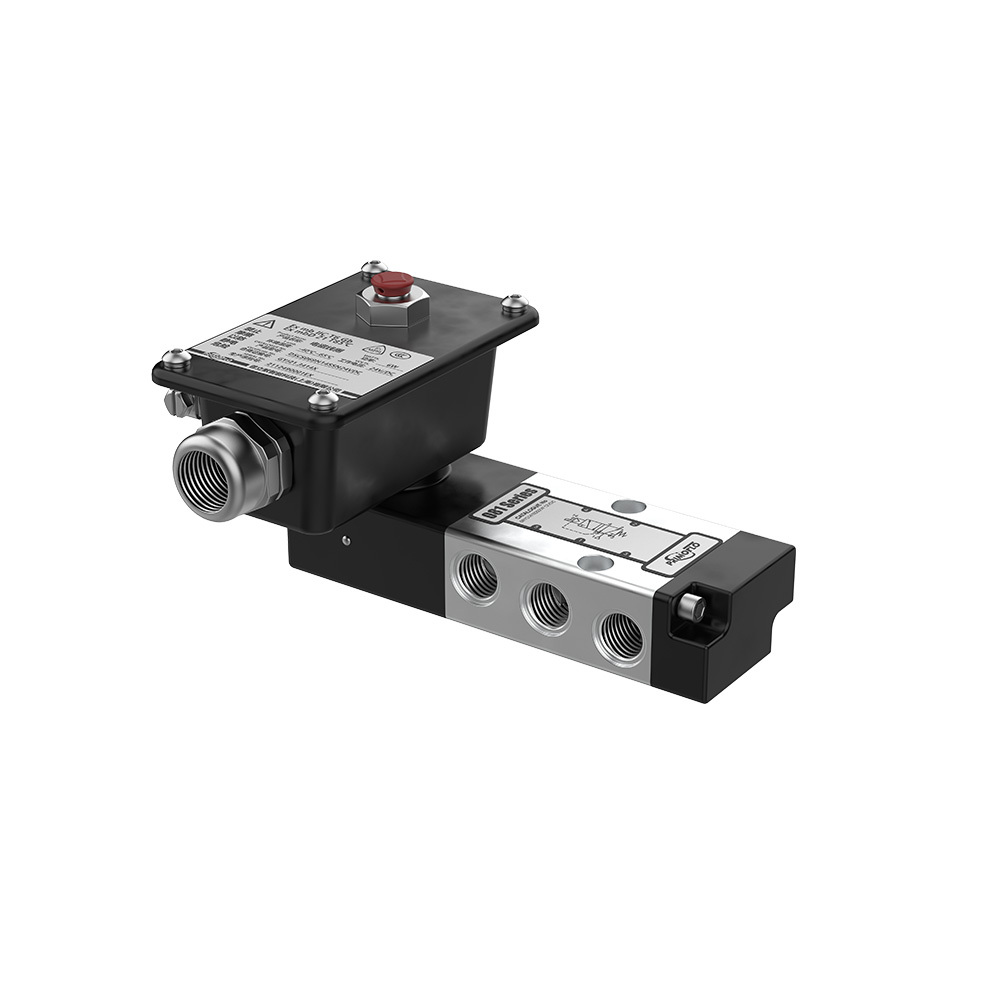

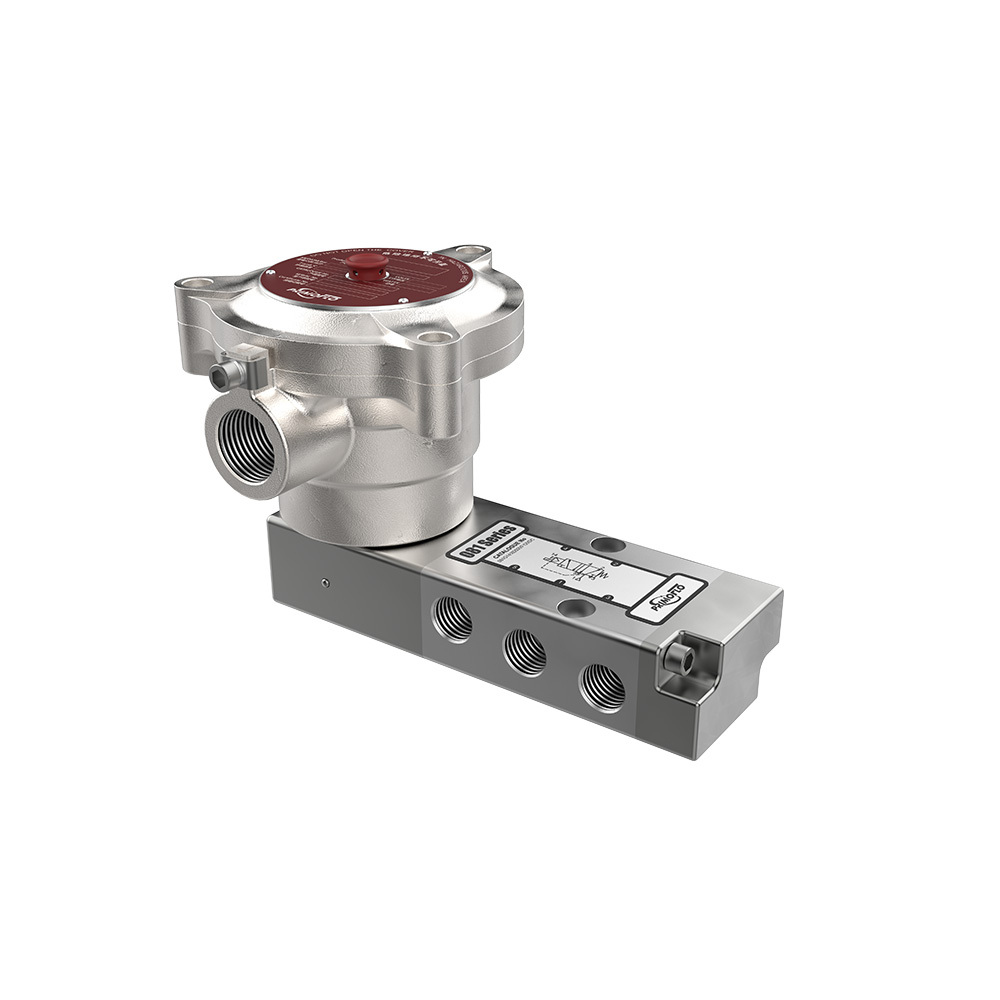

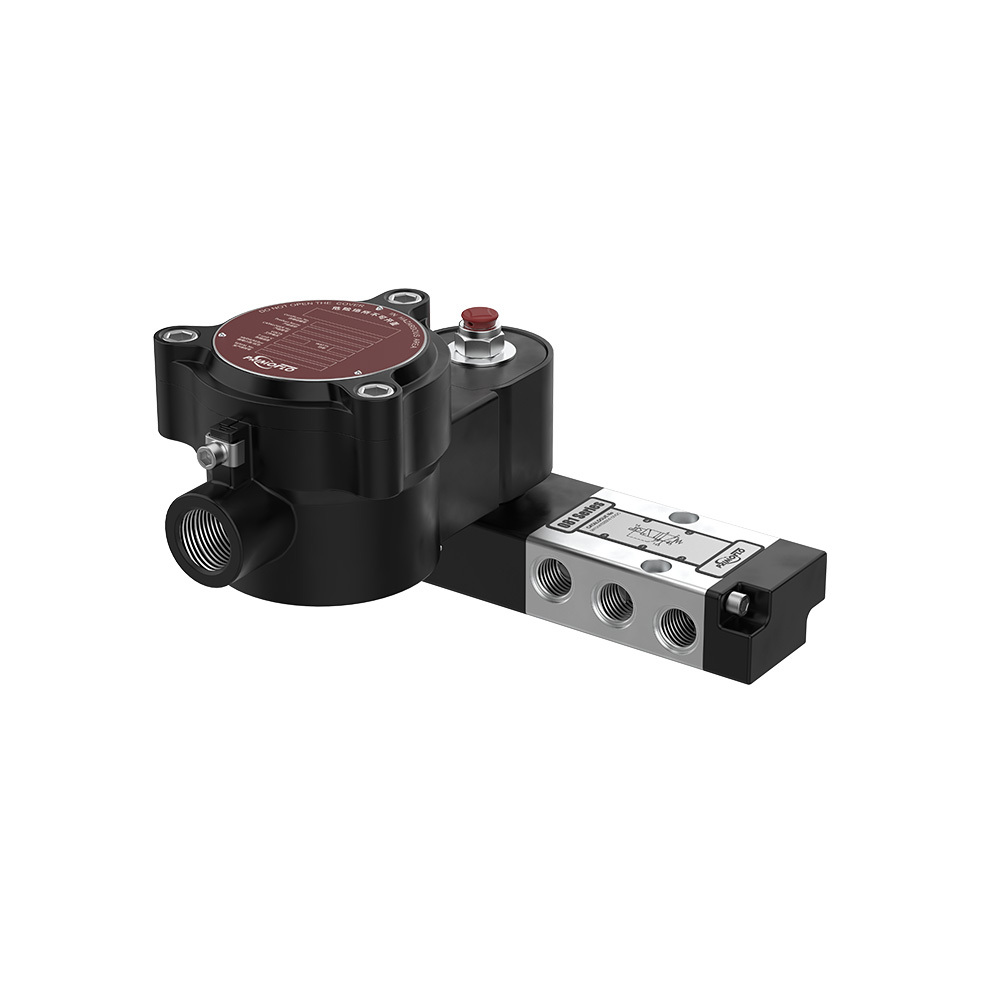

Leveraging high‑performance coils and premium internal components, the 081‑Series solenoid valves serve a broad range of actuator piloting duties for pharmaceutical intermediates, specialty chemicals, chemical synthesis, polymer materials, pesticides and catalyst processing.
They deliver long‑service‑life reliable performance across industrial automation applications.
|
Ordering Code Builder |
||||||||||
|
Coil |
Entry |
Series |
Port |
Function |
Body |
Manual |
Power |
Approval |
Special |
Voltage |
|
DLCA |
M | 081 | N14 | 3 |
AL |
N | 018 | G | * |
24VDC |
|
Selection Code Fields |
|||
|
Field |
Code / Choices |
Selection meaning |
Notes |
|
Coil Category |
ISCA / ISCS / XHCA / XHCS / DLCA / DLCS |
Intrinsically safe coil; Ex d junction box with Ex m coil; Junction-box Ex coil |
Aluminum or stainless-steel enclosure depends on suffix. See coil category matrix below |
|
Cable Entry |
Blank = 1/2" NPT, M = M20 x 1.5 |
Threaded cable entry selection. |
Junction-box coils supplied without cable gland |
|
Product Series |
081 |
08 Series Type 1 product series code. |
Use 081 in the ordering code |
|
Port Size |
N14 = NPT 1/4", G14 = G 1/4" |
Process / pneumatic port connection. |
Confirm thread standard with project piping or manifold interface |
|
Function Type |
1=3/2 Single Coil, 2=5/2 Single Coil |
Valve function and coil configuration selection |
Select according to the required port/position configuration and coil arrangement. |
|
Body Material |
AL= Aluminum/PBT-GF30 end-cap |
Aluminum/Stainless Steel |
Standard material for listed configuration. |
|
Manual Operator |
Blank= With Manual-Operator |
With or without manual-operator |
Select according to site operation and safety philosophy |
|
Power Consumption |
010 / 018 / 025 / 035 / 080 |
Coil power level selection |
Power by three digits, e.g. 018 = 1.8W. |
|
Solenoid Certification |
E = ATEX Certified |
Hazardous-area certification selection for the solenoid coil. |
Select according to project or site requirements. |
|
Special Option |
* |
Special on request. |
Confirm with ONENESS before order release. |
|
Voltage |
24VDC / 110VDC, 24VAC / 220VAC / ... |
Rated coil voltage. |
Allowable voltage fluctuation: -15% to +10% of rated voltage. |
|
Technical Specifications |
|
|
Item |
Specification |
|
Operation principle |
Pilot operated |
|
Media |
Air-inert gas |
|
Ambient temperature |
-40°F to 149°F (-40℃ to 65℃) |
|
Media temperature |
-40°F to 149°F (-40℃ to 65℃) |
|
Operating pressure differential |
29 - 145 psi (2 - 10 bar) |
|
Flow coefficient |
1.23 Cv（1.06 Kv m³/h / 17.67 Kv l/min) - 1/4" |
|
Body material |
Aluminum / Stainless Steel |
|
Application environment |
Indoor / Outdoor |
|
Installation |
Any Position |
|
IP rating |
IP66 / IP67 |
|
Coil Category Matrix |
|
|
Code |
Coil category / enclosure |
|
ISCA |
Intrinsically Safe Solenoid, Aluminum |
|
ISCS |
Intrinsically Safe Solenoid, Stainless Steel |
|
XHCA |
Ex d junction box with Ex m coil, A luminum |
|
XHCA |
Ex d junction box With Ex m Coil, Stainless Steel |
|
DLCA |
Junction-box Ex coil, Aluminum |
|
DLCS |
Junction-Box Ex Coil, Stainless Steel |
|
Solenoid Operators |
|||
|
Class of insulation |
DC watts |
AC watts |
Standard voltage |
| H |
1-8W |
1.8-8W |
DC: 12-240V; AC: 24V- 440V AC /40-60Hz |
|
Explosion-Proof Marking Reference |
||
|
Operator family |
Gas marking |
Dust marking |
|
ISCA / ISCS |
Ex ia IIC T6/T5 Ga |
Ex ia IIIC T85℃/T100℃ Db |
|
XHCA / XHCS |
Ex db mb IIC T6...T3 Gb |
Ex mb tb IIIC T85℃...T170℃ Db |
|
DLCA / DLCS |
Ex db IIC T6 Gb |
Ex tb ⅢC T85℃ Db |
Electrical / Documentation Notes
ISC/XHC/DLC: 1/2" NPT or M20 x 1.5 threaded cable entry; enclosure supplied without cable gland. For special coil requirements, consult ONENESS.
