08-6 Explosion-proof Pilot-Operated Spool Valve

The 086‑Series pilot‑operated spool valves feature proprietary static‑sealing design with self‑seal compensation and anti‑contamination properties, delivering multi‑million‑cycle operational reliability.

Built for ultra‑long service life, they perform excellently for air and inert gas control within harsh operating conditions.

Offered with anodized‑aluminum or stainless‑steel valve bodies, the 086‑Series covers a wide range of actuator pilot‑control applications. It delivers stable performance in demanding environments such as chemical processing, oil refining, food & beverage, and life‑science manufacturing.

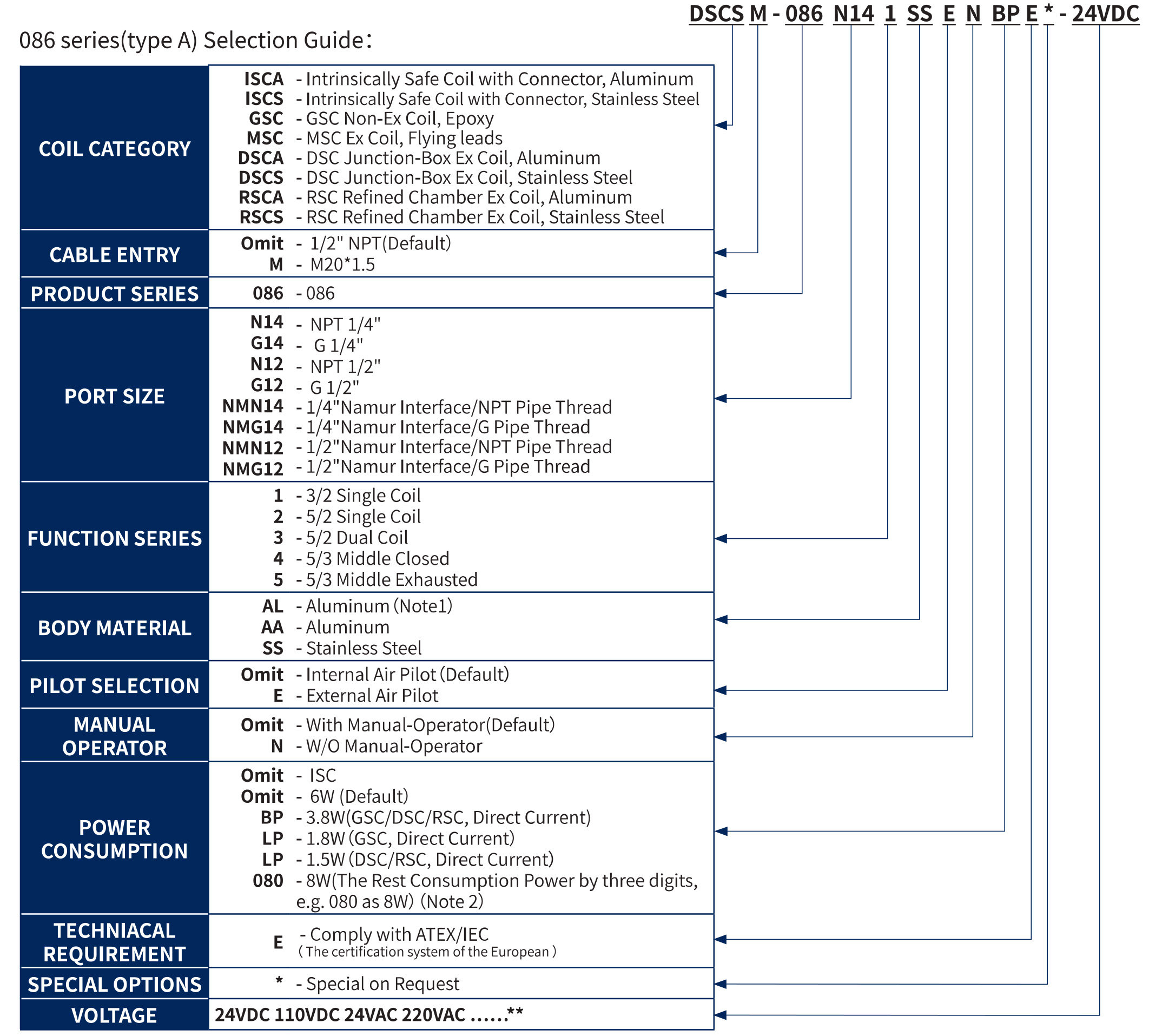

ORDERING GUIDE

*Special options are available upon the requirement.
**ATEX/IEC certified is only available for 24VDC, 220VAC.

FEATURES AND BENEFITS

• The valves are certified according to IEC 61508 functional safety data and have SIL-3 capability (TUV)
• Unique static sealing compensation design
• Single and dual solenoid constructions
• Available in External & Internal pilot
• Explosion-proof operators DHC series special design with magnetic frame embedded
• Can be mounted in any position
• The explosion-proof DC coils are equipped with a built-in integrated surge protection device
• Available in low power consumption types
• Coils have class H insulation material
• Manual-operator or Manual-reset are optional
• Threaded port connection and NAMUR connection are optional
• Meeting various international certifications: NEPSI, EAC, ATEX, IECEx

MATERIALS

GENERAL

APPLICATIONS

• Actuation Control
• Redundant System
• Pneumatic Systems
• Safety Control
• Automation Control
