SWIVEL ZYQ75/ZYQ85

SKU:
The HP-ZYQ75/ZYQ85 swivel-axial couplings provide 360° rotation of the hose and is actively used at the gas station with ZYQ75/ZYQ25 automatic nozzle or nozzles of other manufacturers. Its function is to prevent the hose from bending and twisting during the winding (or unwinding) process. It is specially designed for ZYQ75/ZYQ25 series nozzle or nozzles of other manufacturers.
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • SIZE:
    ZYQ75.0
    ZYQ75.1
    ZYQ85.0
    ZYQ85.1
  • THREAD:
    NPT
    BSP
    BSPT
    Please select the information you wantX
Quantity:
-
+
  • SWIVEL ZYQ75/ZYQ85
  • SWIVEL ZYQ75/ZYQ85
  • SWIVEL ZYQ75/ZYQ85
  • SWIVEL ZYQ75/ZYQ85
  • SWIVEL ZYQ75/ZYQ85
  • SWIVEL ZYQ75/ZYQ85
  • SWIVEL ZYQ75/ZYQ85
  • SWIVEL ZYQ75/ZYQ85
1/1
  • SWIVEL ZYQ75/ZYQ85
  • SWIVEL ZYQ75/ZYQ85
  • SWIVEL ZYQ75/ZYQ85
  • SWIVEL ZYQ75/ZYQ85
  • Description

MATERIAL

  • Body: Aluminum,stainless (ZYQ75) ; Brass (ZYQ85)
  • Seals: NBR、FPM

FEATURES AND BENEFITS

  • Compatible  with  gasoline, diesel.
  • Flexible rotation and reduce premature hose wear.
  • Secure design not repairable or rebuildable for certainty of operation.
  • Each one is factory assembled and tested.
  • Maximum Flow rate: 60 L/min.
  • Maximum working pressure: 3.5bar.
  • Working temperature: -20℃~ +55℃.

ORDERING SPECIFICATION
PART NUMBER DIMENSIONS
APPROX
NOZZLE SIZE HOSE INLET WEIGHT
APPROX
type D(mm) L(mm) G1 G2 type kg

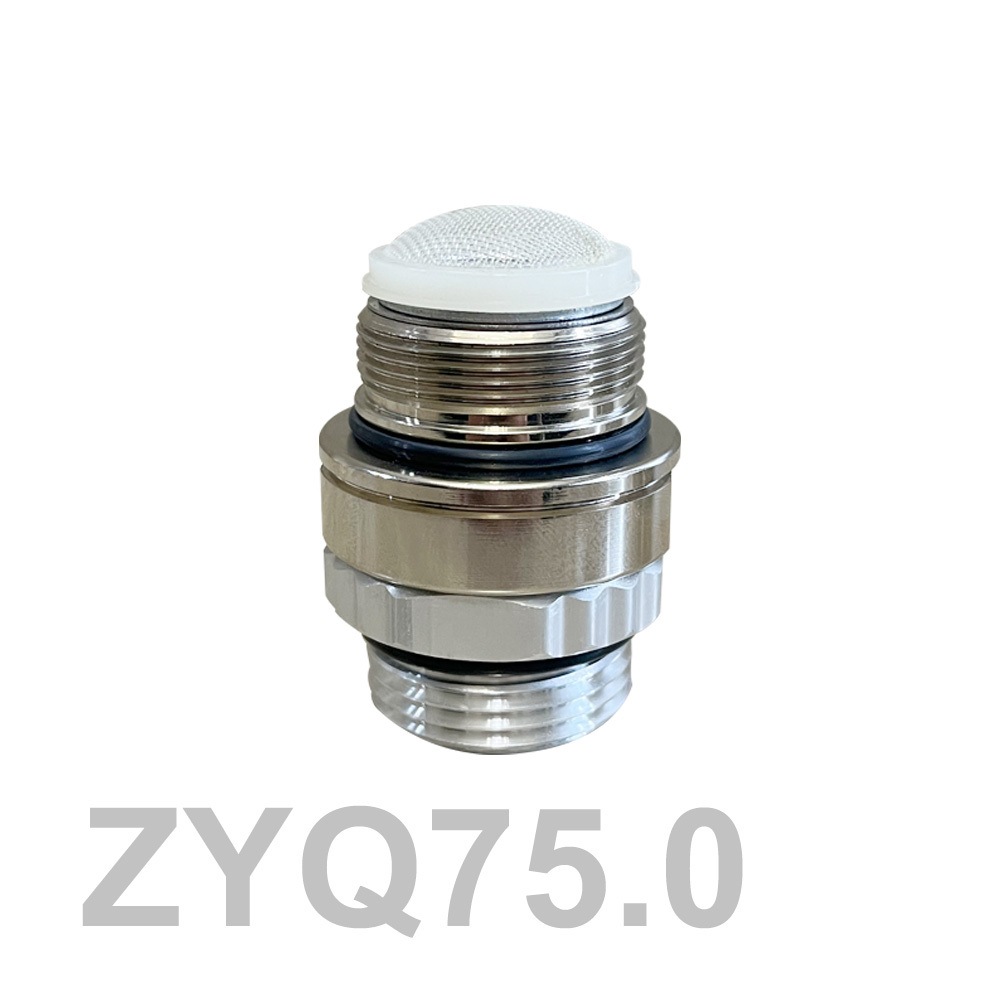

ZYQ75.0 43 57 M34*1.5 1" male NPT/BSP/BSPT 0.17

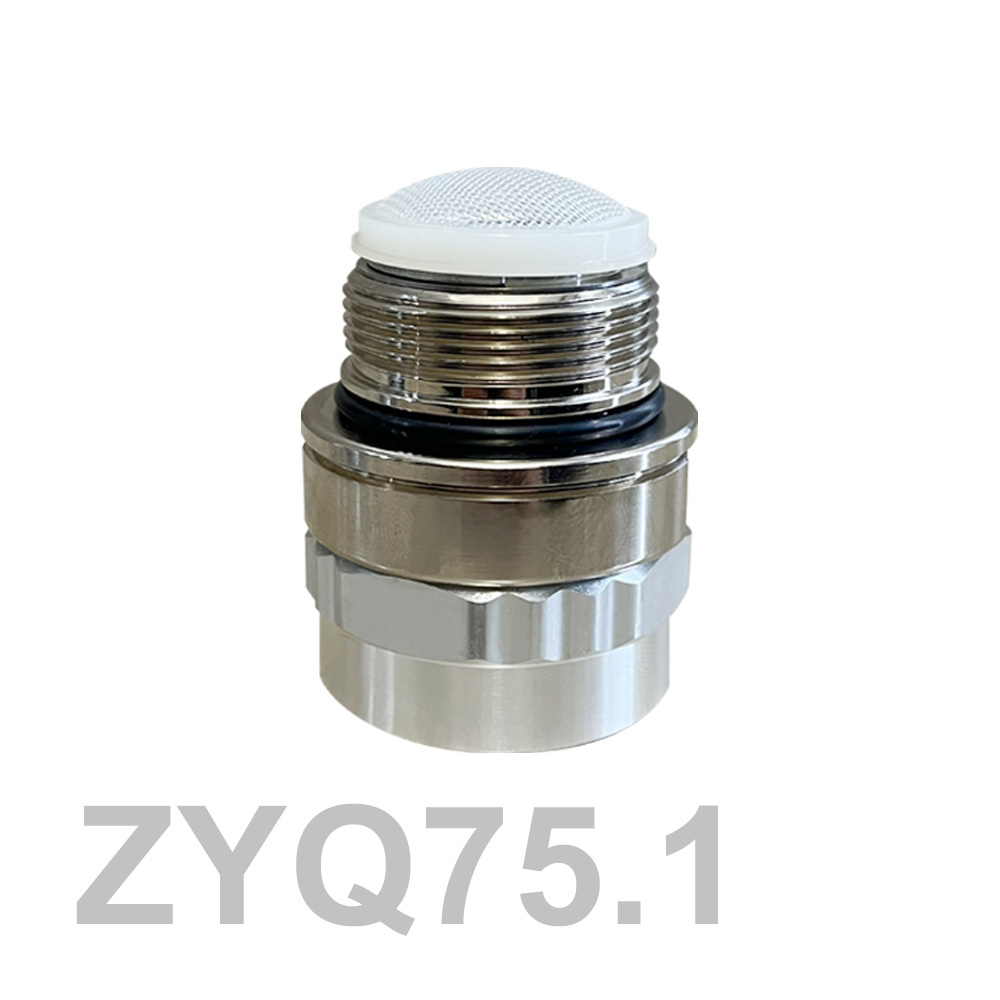

ZYQ75.1 43 53 M34*1.5 1"female 0.18

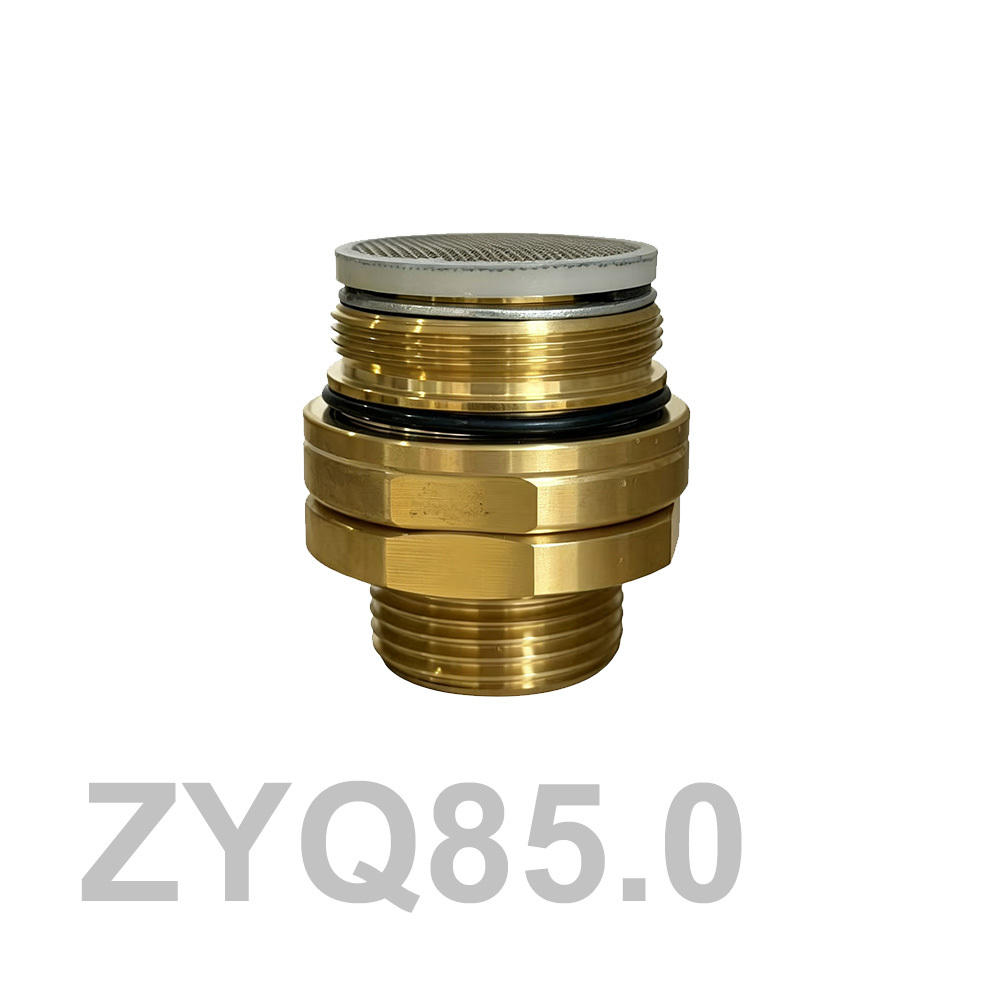

ZYQ85.0 49 53 M42*1.5 1" male 0.33

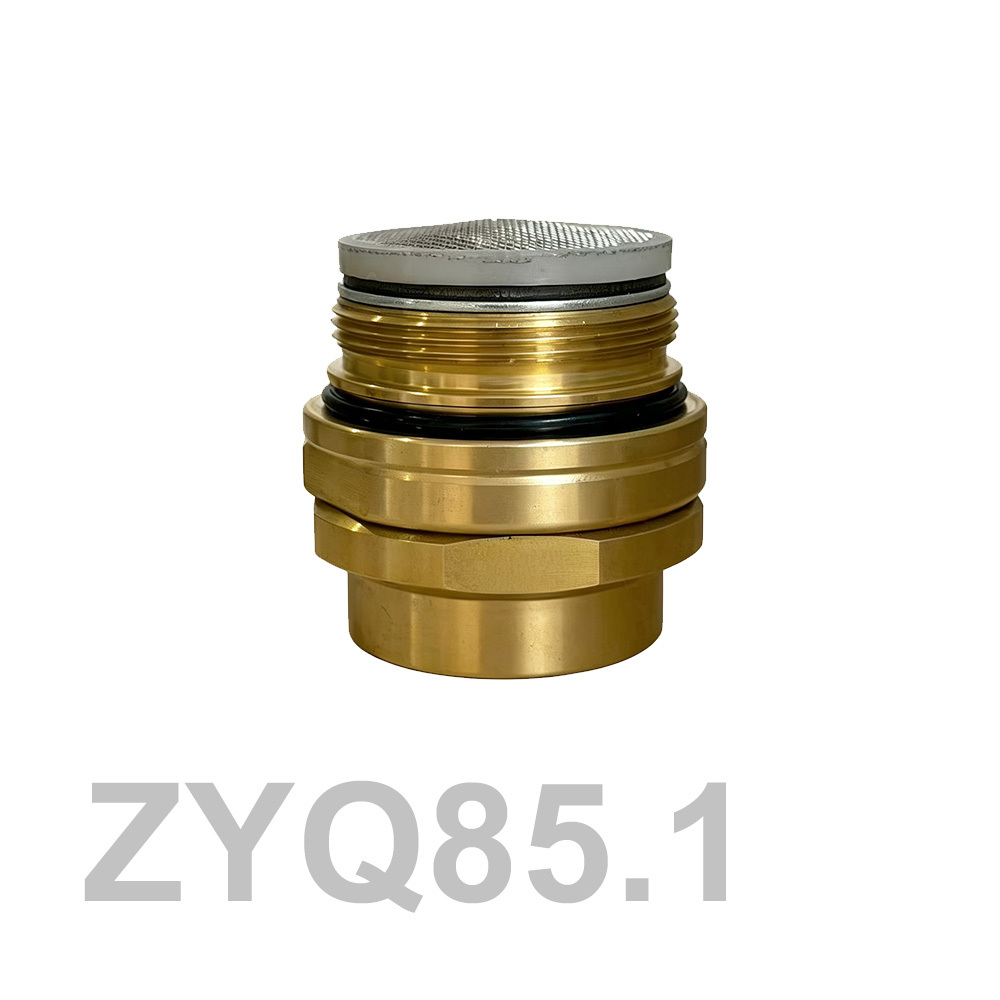

ZYQ85.1 49 48 M42*1.5 1"female 0.35
