Home > Petrol Station Eq > Nozzle > NOZZLE 11B/11BP
  • NOZZLE 11B/11BP
1/1
  • NOZZLE 11B/11BP

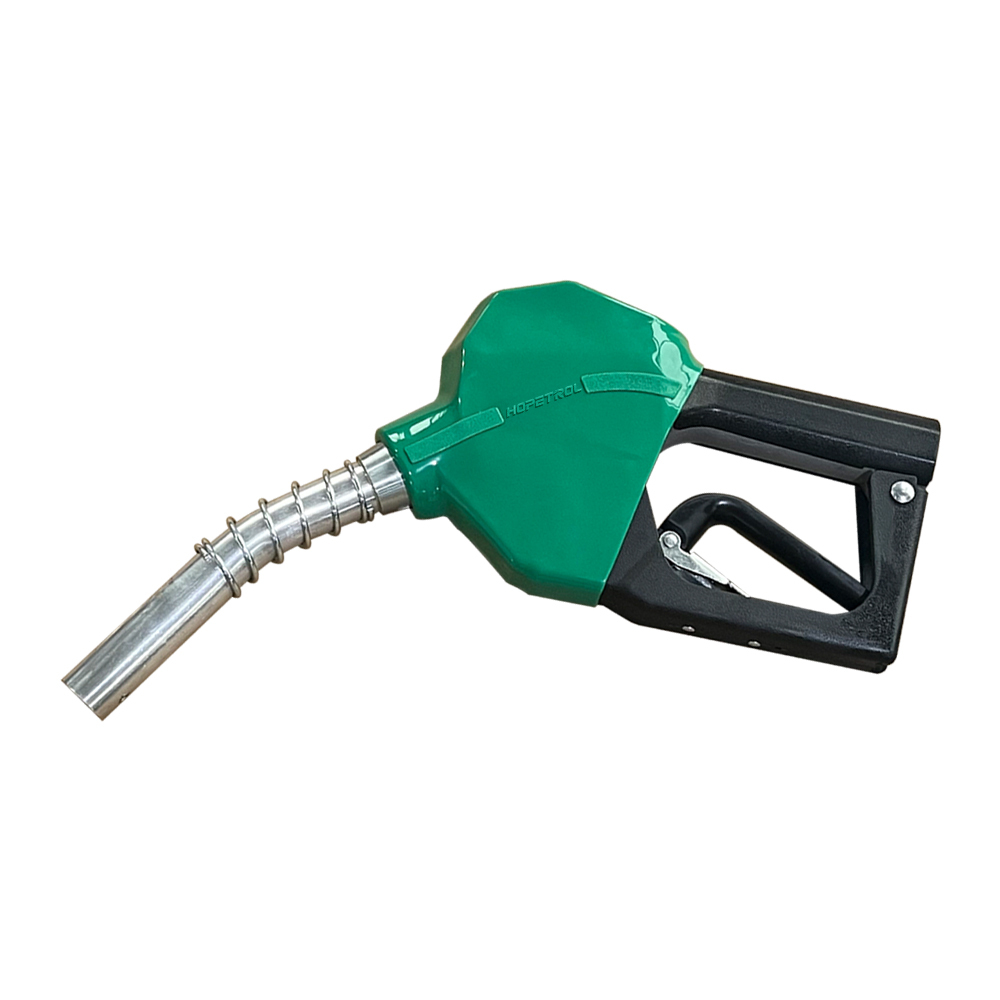

NOZZLE 11B/11BP

SKU:
The HP-11B/11BP Series nozzles are designed for use in retail and commercial filling applications, including pre-pay, self- and full-service, credit/debit card readers, or card-lock systems to help prevent gasoline/ diesel spills.
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • COLOR:
    GREEN
    RED
    BLACK
    BLUE
    YELLOW
    GREY
    ORANGE
  • THREAD:
    NPT
    BSP
    BSPT
  • CETIFICATION:
    UL
    ATEX
  • SPOUT:
    11BP(20mm)
    11B(24mm)
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (0)
  • NOZZLE 11B/11BP
  • NOZZLE 11B/11BP
1/1
  • NOZZLE 11B/11BP
  • Description
Featuring a Dural lever guard with an impact-resistant structure, the nozzle has been verified by simulated extreme drop tests: 10 consecutive drops
from 1.2 meters onto concrete, and still maintains full functionality of core components such as the valve body and operating lever. This robust design
reliably protects against accidental impacts and drops in demanding environments, ensuring long-term, stable operation while significantly reducing
maintenance and replacement costs.

MATERIAL
  • Spout: Aluminum
  • Body: Aluminum Lever & Lever
  • Guard: Composite plastic
  • Cover(Hand-warmer): PVC
  • Inlet size: 3/4" NPT/BSP/BSPT
  • Seal part: NBR, Viton

FEATURES  AND  BENEFITS
  • Flow range: 55LPM.
  • Working temperature: -25℃~60℃.
  • Working pressure range: 0.5bar(7psi)~3.45 bar(50psi)
  • 100% factory tested.
  • Selective casting process of body.
  • Hold-open rack is available for full service's applications.
  • Easily to replace nozzle spout, only need to remove screws.
  • Lab cycle-tested and proven to last longer than 1 million cycles.
  • UL and ULc-Listed for use in gasoline, diesel, and up to 10% ethanol blends.
  • Full hand insulator protects both nozzle and vehicle, and insulates user's hands.
  • Prevents spills in pre-pay or card-lock systems - No Pressure, No Flow Device.
  • Prevents consumer from jamming the nozzle in an open position - blocker on the lever guard.
  • The nozzles shut off when falling out of a vehicle and is tipped up, limiting spillage and unsafe conditions.
  • The nozzle will not open until the pumping system is pressurized, and closes automatically when the pressure is removed.
