REUSABLE COUPLING STANDARD TYPE

SKU:
Hopetrol Standard Reusable Couplings are specially engineered for connection between fuel hoses and fuel nozzles, or between hoses and other related equipment. Two configurations are available: fixed type and swivel type. The swivel reusable coupling features 360° free rotation; its full-circle swivel design eases hose alignment between the nozzle and filling hose, effectively lowering operator fatigue during refueling operations.
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • CONNECTION MODE:
    MALE REUSABLE
  • HOSE SIZE:
    16*27
    19*28.5
    25*35
    25*37
  • THREAD:
    NPT
    BSP
    BSPT
  • THREAD SIZE:
    3/4"
    1"
  • STRUCTURE:
    FIXED
    SWIVEL
  • VISION:
    STANDARD
    Please select the information you wantX
Quantity:
-
+
  • REUSABLE COUPLING STANDARD TYPE
  • REUSABLE COUPLING STANDARD TYPE
  • REUSABLE COUPLING STANDARD TYPE
  • REUSABLE COUPLING STANDARD TYPE
1/1
  • REUSABLE COUPLING STANDARD TYPE
  • REUSABLE COUPLING STANDARD TYPE
  • Description
MATERIAL
  • Mandrel: Brass & Chrome plated
  • Ferrule: Brass & Chrome plated
  • Swivel type nut: Brass & Chrome plated
  • Seal: NBR/FPM

FEATURES AND BENEFITS

  • Reliably connect fuel hoses to nozzles, fuel dispensers and pipe fittings for transmission of fuel.
  • Fixed couplings maintain fixed positioning; swivel couplings enable 360° free rotation to prevent hose twisting and tangling, improving refueling flexibility.
  • Standard sizes are in regular stock; customized solutions on dimension, thread and material are available to meet special pipeline installation requirements.

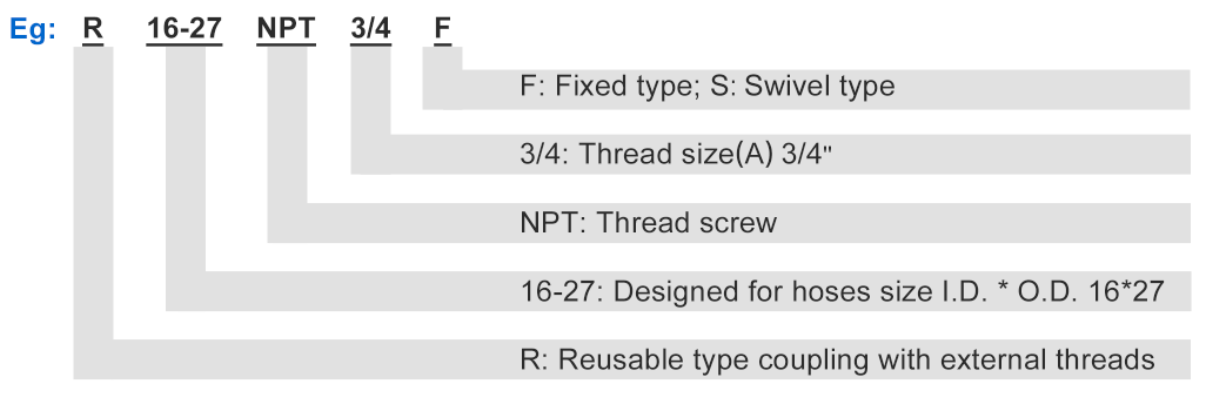

 ORDERING SPECIFICATION

ITEM NO. NOMINAL SIZE D1 D2 THREAD SIZEA THREAD SCREW HOSE SIZE
 I.D* O.D.
SWIVEL WEIGHT FIXED WEIGHT
inch mm mm inch mm kg kg
      R16-27 5/8" 21.3 27 3/4" NPT/BSP/BSPT
(O-ring is optional)
16*27 0.2 0.18
R19-28.5 3/4" 24 28.5 3/4" 19*28.5 0.27 0.21
R25-35 1" 30.8 35 1" 25*35 0.32 0.26
R25-37 1" 30.8 36.5 1" 25*37 0.34 0.28
