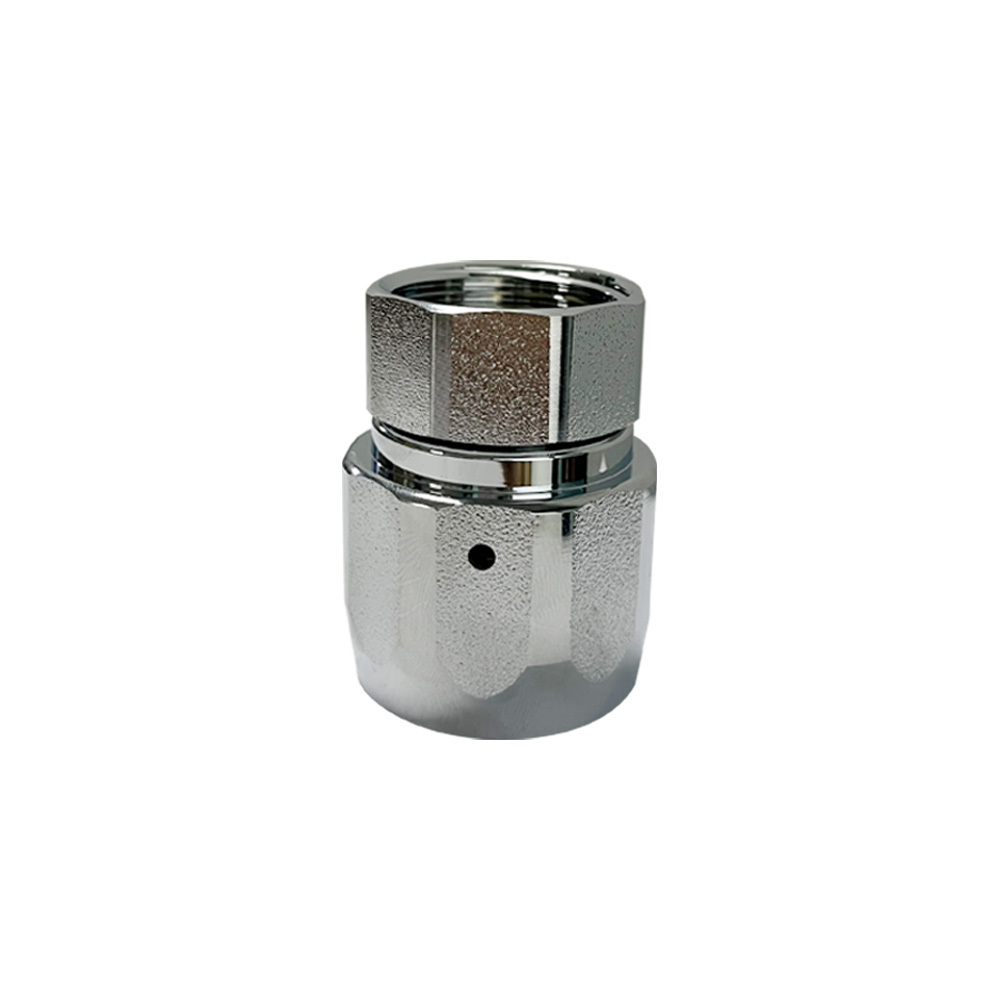

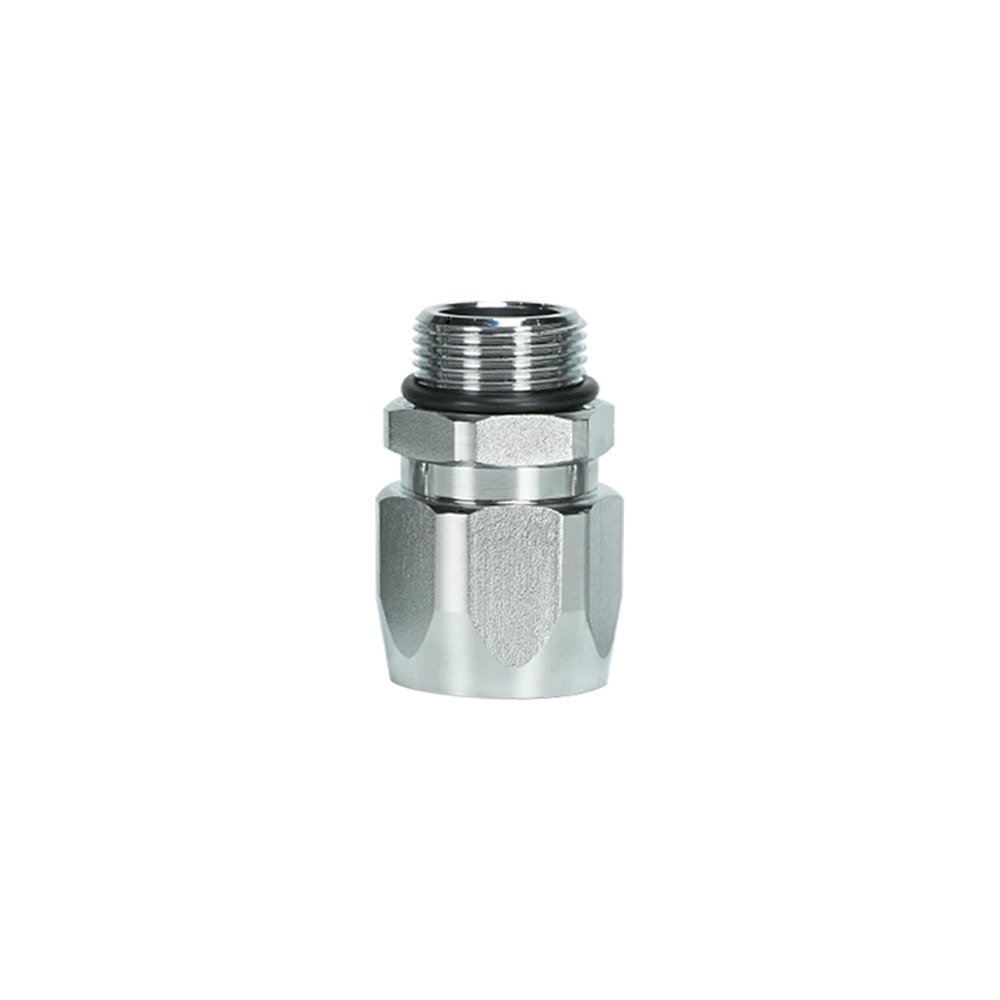

REUSABLE COUPLING EN TYPE

• Mandrel: Brass & Chrome plated
• Ferrule: Brass & Chrome plated
• Seal: NBR/FPM
• Female reusable nut: Brass

FEATURES AND BENEFITS

• Available with male and female thread options for wide compatibility with most gas station fuel hoses.
• Equipped with sealing gaskets for tight clamping connection, effectively preventing fuel leakage during fluid transfer.
• Two installation modes available: on-site assembly and factory pre-assembly for flexible application.

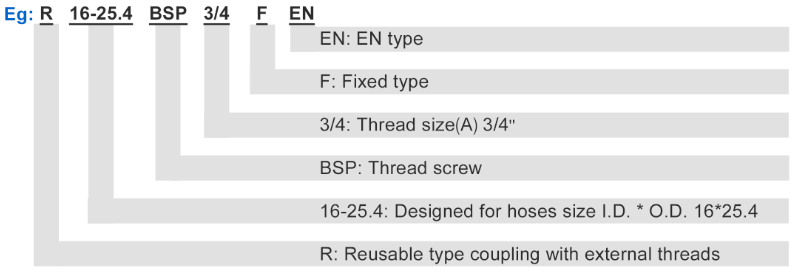

	ITEM NO.	NOMINAL SIZE	D1	D2	THREAD SIZE （A）	THREAD SCREW	HOSE SIZE I.D* O.D.	FIXED WEIGHT
		inch	mm	mm	inch		mm	kg
	R16-25.4-BSP3/4-F-EN	5/8"	M21*1.5	25.4	3/4"	BSP (O- ring is optional)	16*25.4	0.16
	R16-25.4-BSP1-F-EN	5/8"	M21*1.5	25.4	1"		16*25.4	0.18
	R16-26-BSP3/4-F-EN	5/8"	M21*1.5	26	3/4"		16*26	0.16
	R16-26-BSP1-F-EN	5/8"	M21*1.5	26	1"		16*26	0.18
	R16-27-BSP3/4-F-EN	5/8"	M21*1.5	26.8	3/4"		16*27	0.19
	R16-27-BSP1-F-EN	5/8"	M21*1.5	26.8	1"		16*27	0.20
	R19-28.5-BSP3/4-F-EN	3/4"	M24*1.5	28.3	3/4"		19*28.5	0.21
	R19-28.5-BSP1-F-EN	3/4"	M24*1.5	28.3	1"		19*28.5	0.21
	R19-29-BSP3/4-F-EN	3/4"	M24*1.5	28.8	3/4"		19*29	0.21
	R19-29-BSP1-F-EN	3/4"	M24*1.5	28.8	1"		19*29	0.21
	R19-30-BSP3/4-F-EN	3/4"	M24*1.5	29.6	3/4"		19*30	0.21
	R19-30-BSP1-F-EN	3/4"	M24*1.5	29.6	1"		19*30	0.21
	R21-31-BSP3/4-F-EN	7/8"	M26*1.5	30.8	3/4"		21*31	0.23
	R21-31-BSP1-F-EN	7/8"	M26*1.5	30.8	1"		21*31	0.23
	R21-32-BSP3/4-F-EN	7/8"	M26*1.5	31.8	3/4"		21*32	0.23
	R21-32-BSP1-F-EN	7/8"	M26*1.5	31.8	1"		21*32	0.23
	R25-35-BSP1-F-EN	1"	M28*1.5	35	1"		25*35	0.23
	R25-36-BSP1-F-EN	1"	M28*1.5	36	1"		25*36	0.23
	R25-37-BSP1-F-EN	1"	M28*1.5	37	1"		25*37	0.23

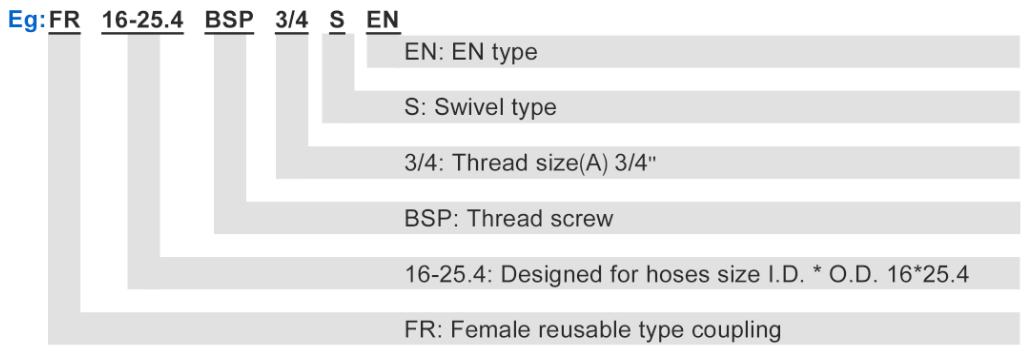

	ITEM NO.	NOMINAL SIZE	D1	D2	THREAD SIZE （A）	THREAD SCREW	HOSE SIZE I.D* O.D.	FIXED WEIGHT
		inch	mm	mm	inch		mm	kg
	FR16-25.4-BSP3/4-S-EN	5/8"	M21*1.5	25.4	3/4"	BSP   (Rectangular ring is optional)	16*25.4	0.16
	FR16-25.4-BSP1-S-EN	5/8"	M21*1.5	25.4	1"		16*25.4	0.18
	FR16-26-BSP3/4-S-EN	5/8"	M21*1.5	26	3/4"		16*26	0.16
	FR16-26-BSP1-S-EN	5/8"	M21*1.5	26	1"		16*26	0.18
	FR16-27-BSP3/4-S-EN	5/8"	M21*1.5	26.8	3/4"		16*27	0.19
	FR16-27-BSP1-S-EN	5/8"	M21*1.5	26.8	1"		16*27	0.20
	FR19-28.5-BSP1-S-EN	3/4"	M24*1.5	28.3	1"		19*28.5	0.21
	FR19-29-BSP1-S-EN	3/4"	M24*1.5	28.8	1"		19*29	0.21
	FR19-30-BSP1-S-EN	3/4"	M24*1.5	29.6	1"		19*30	0.21
	FR21-31-BSP1-S-EN	7/8"	M26*1.5	30.8	1"		21*31	0.23
	FR21-32-BSP1-S-EN	7/8"	M26*1.5	31.8	1"		21*32	0.23
	FR25-35-BSP1-S-EN	1"	M28*1.5	35	1"		25*35	0.23
	FR25-36-BSP1-S-EN	1"	M28*1.5	36	1"		25*36	0.23
	FR25-37-BSP1-S-EN	1"	M28*1.5	37	1"		25*37	0.23
