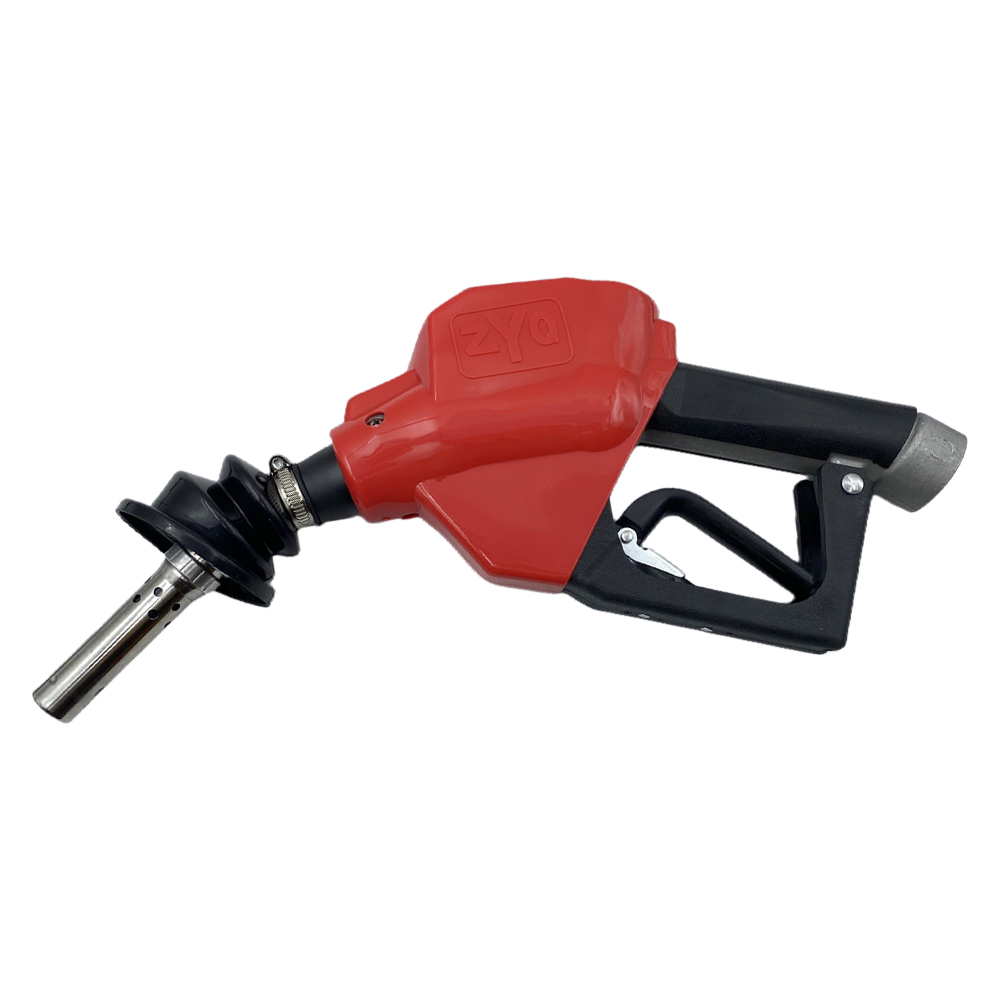

Featuring a Dural lever guard with an impact-resistant structure, the nozzle has been verified by simulated extreme drop tests: 10 consecutive
drops from 1.2 meters onto concrete, and still maintains full functionality of core components such as the valve body and operating lever. This
robust design reliably protects against accidental impacts and drops in demanding environments, ensuring long-term, stable operation while
significantly reducing maintenance and replacement costs.
MATERIAL
- Spout: Stainless steel
- Body: Aluminum
- Lever & Lever Guard: Composite plastic
- Cover(Hand-warmer): PVC
- Inlet size: M34*1.5
- Seal part: NBR, Viton
FEATURES AND BENEFITS
- Flow range: 42LPM.
- Working temperature: -30°C~60°C.
- Working pressure range: 0.5bar(7psi)~3.45 bar(50psi)
- 100% factory tested.
- Vapor Escape Guard improves vapor collection.
- Internal vapor path, no replacement parts needed.
- Lab cycle-tested and proven to last longer than 1 million cycles.
- UL Listed for use in gasoline, diesel, and up to 10% ethanol blends.
- Prevents spills in pre-pay or card-lock systems-No Pressure, No Flow Device.
- Stainless steel insert in spout to last longer than standard aluminum only spouts.
- Prevents consumer from jamming the nozzle in an open position - blocker on the lever guard.
- The nozzles shut off when falling out of a vehicle and is tipped up, limiting spillage and unsafe conditions.
- Lever-activated vapor valve only opens when product is flowing controlling the amount of vapors collected from the vehicle.
- The nozzle will not open until the pumping system is pressurized, and closes automatically when the pressure is removed.
