Home > Petrol Station Eq > CRIMPING COUPLING UL TYPE
  • CRIMPING COUPLING UL TYPE
  • CRIMPING COUPLING UL TYPE
1/1
  • CRIMPING COUPLING UL TYPE
  • CRIMPING COUPLING UL TYPE

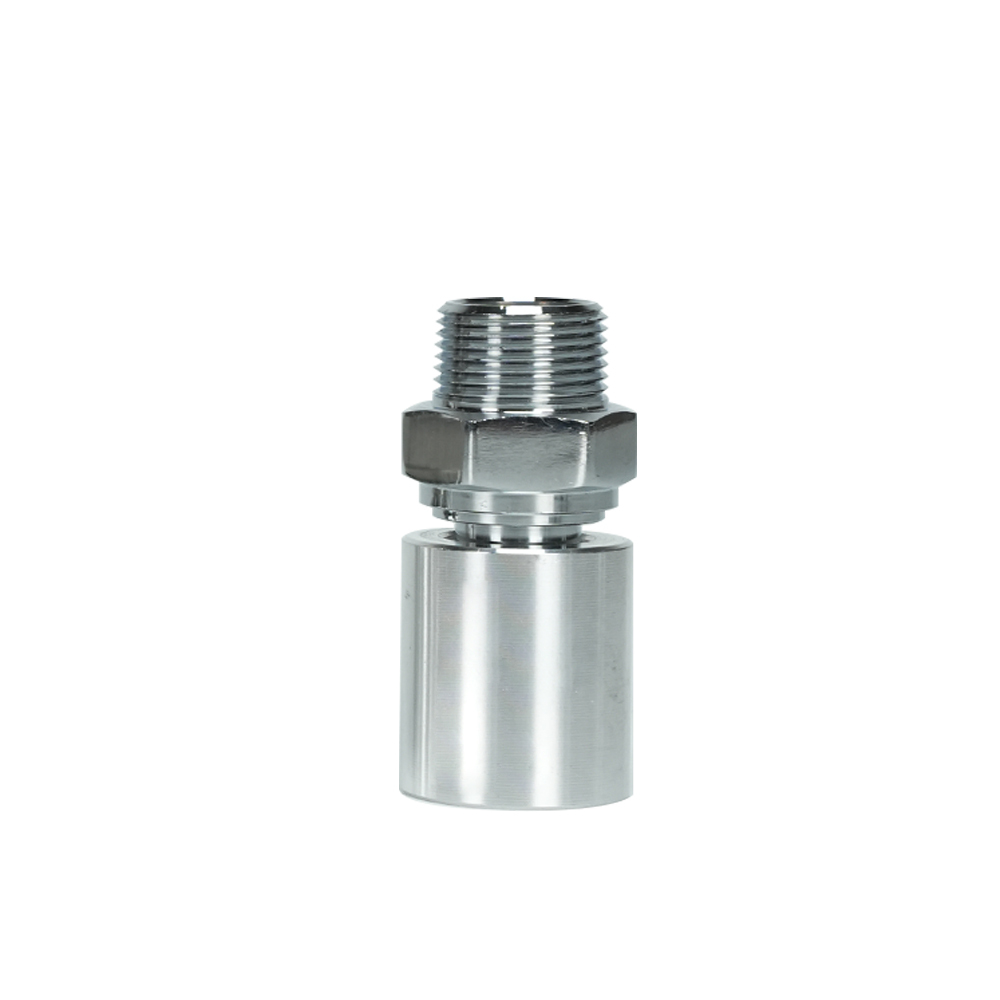

CRIMPING COUPLING UL TYPE

SKU:
Hopetrol UL Crimp Couplings are engineered to connect fuel hoses to fuel nozzles or other related equipment. Featuring 360° free rotational movement, this product are UL330 certified.
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • CONNECTION MODE:
    MALE CRIMPING
  • HOSE SIZE:
    16*27
    19*28.5
    25*37
  • THREAD:
    NPT
    BSP
    BSPT
  • THREAD SIZE:
    3/4"
    1"
  • STRUCTURE:
    FIXED
    SWIVEL
  • VISION:
    UL TYPE
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (0)
  • CRIMPING COUPLING UL TYPE
  • CRIMPING COUPLING UL TYPE
  • CRIMPING COUPLING UL TYPE
  • CRIMPING COUPLING UL TYPE
1/1
  • CRIMPING COUPLING UL TYPE
  • CRIMPING COUPLING UL TYPE
  • Description
MATERIAL
  • Fixed type mandrel: Zinc alloy & Chrome plated

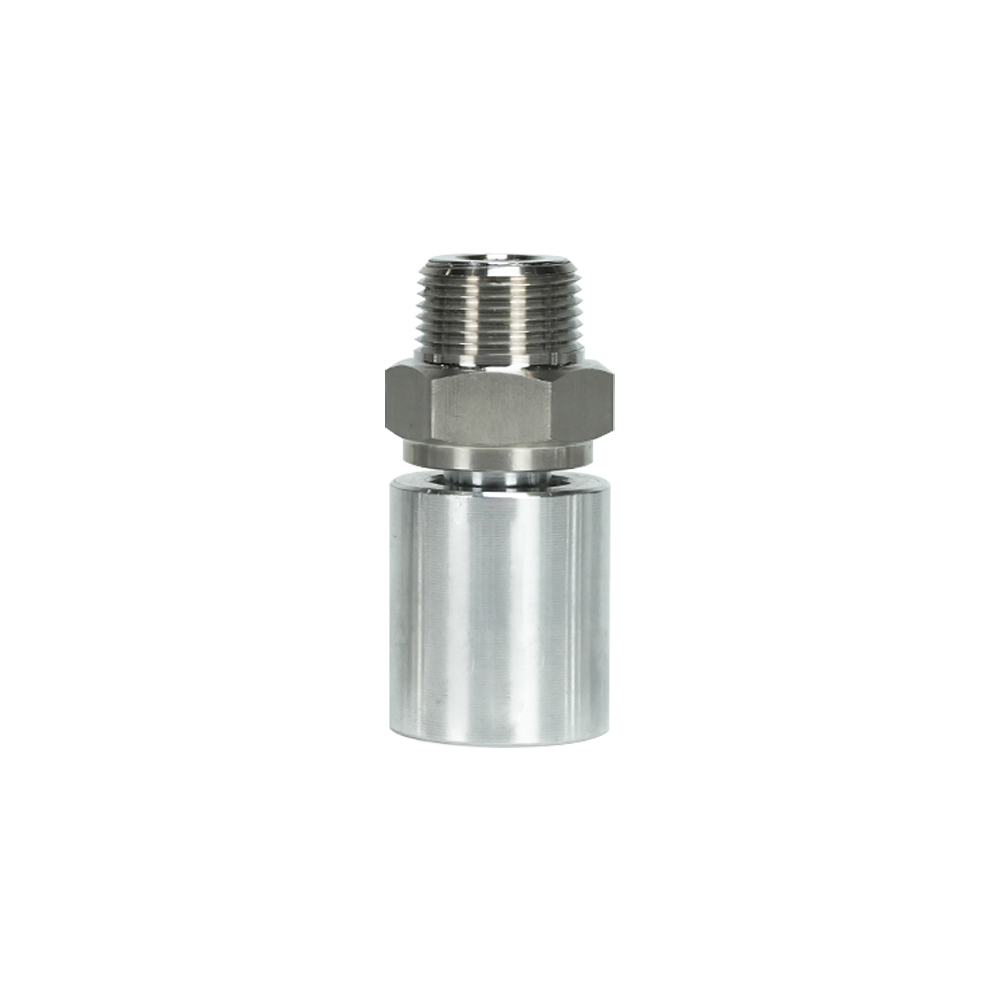

  • Swivel type mandrel: Brass & Chrome plated
  • Ferrule: Aluminum
  • Swivel type nut: Stainless steel & Chrome plated
  • Seal: NBR/FPM

FEATURES AND BENEFITS

  • Specially designed for crimp connection between fuel hoses and fuel nozzles or other matching equipment, dedicated for fuel dispenser hose assemblies.
  • Fully certified to UL330 standard, complying with safety specification.
  • Available in various sizes and materials to fit different hose diameters and thread standards.

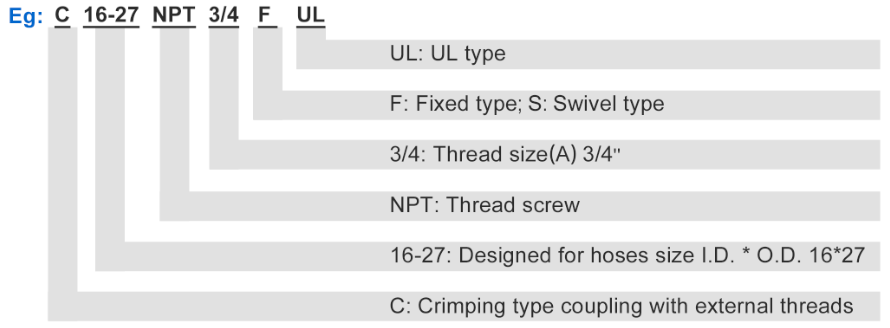

ORDERING SPECIFICATION
ITEM NO. NOMINAL SIZE D1 D2 THREAD SIZE  （A） THREAD SCREW       HOSE SIZE I.D* O.D. SWIVEL WEIGHT FIXED WEIGHT
inch mm mm inch mm kg kg
           C16-27 UL 5/8" 16.8 27.5 3/4" NPT/BSP/BSPT
(O-ring is optional)		 16*27 0.11 0.11
 C19-28.5 UL 3/4" 19.8 29.2 3/4" 19*28.5 0.15 0.15
 C25-37 UL 1" 25.5 37.8 1" 25*37 0.27 0.27
