CRIMPING COUPLING STANDARD TYPE

SKU:

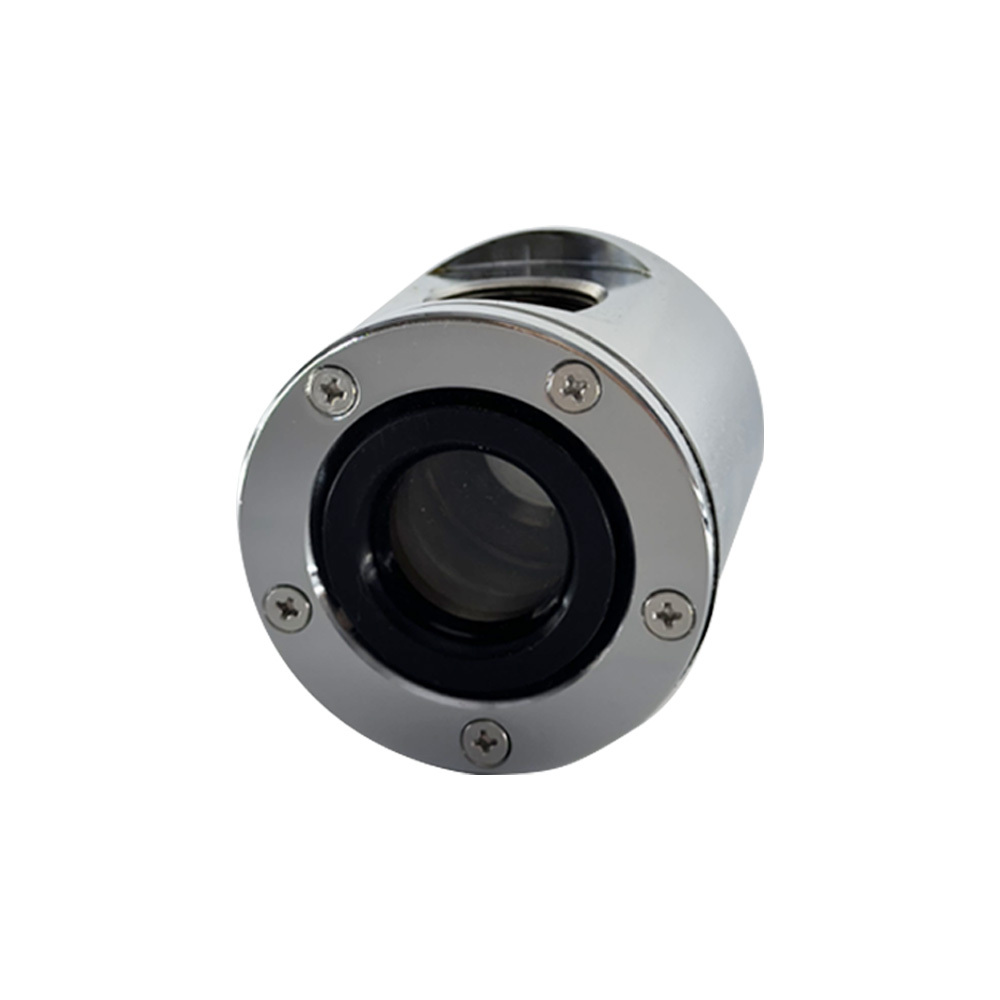

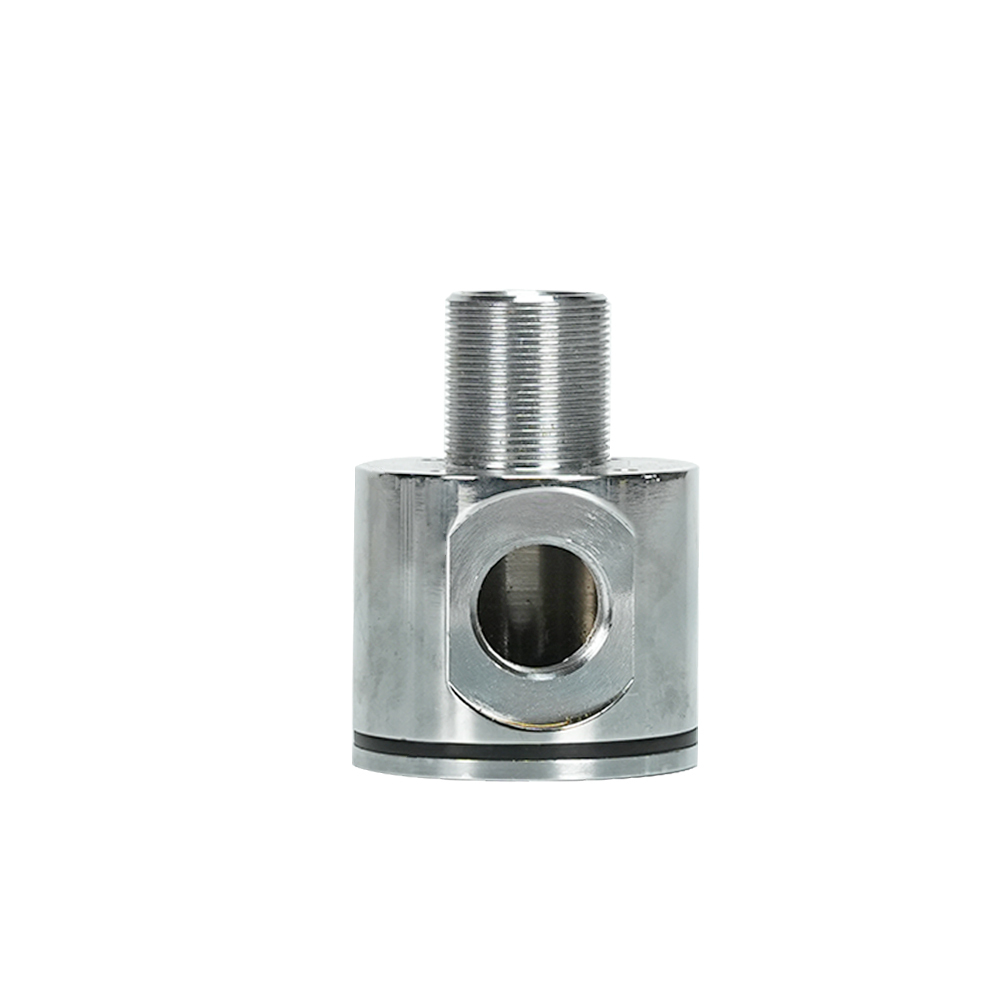

Hopetrol single-window sight glass coupling is a special visual accessory matched with fuel dispensers and oil transmission systems. Adopting an integrated single-window transparent structure design, it can directly observe the internal oil flow state of the pipeline in real time. It is widely compatible with various oils such as gasoline, diesel. With a compact structure and stable performance, it is a universal supporting part for various oil circuit equipment.
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • SIZE:
    3/4"
    1"
  • THREAD:
    NPT
    BSP
    Please select the information you wantX
Quantity:
-
+
  • CRIMPING COUPLING STANDARD TYPE
  • CRIMPING COUPLING STANDARD TYPE
  • CRIMPING COUPLING STANDARD TYPE
  • CRIMPING COUPLING STANDARD TYPE
1/1
  • CRIMPING COUPLING STANDARD TYPE
  • CRIMPING COUPLING STANDARD TYPE
  • Description
MATERIAL
  • Body:Iron & Chrome plated
  • Seals:FPM

FEATURES AND BENEFITS
  • Observe the oil flow in real time, quickly judge the on-off state of the oil circuit and whether the oil supply is smooth, and accurately troubleshoot pipeline blockage, oil cutoff and other faults.
  • Clearly monitor air bubbles, water and impurities in the oil, timely discover vapor lock, oil emulsification, oil pollution and other problems, and ensure equipment metering accuracy and operational stability.
  • Intuitively check for hidden dangers of oil seepage and leakage at joints and seals to facilitate daily inspection and maintenance.

ORDERING SPECIFICATION
PART NUMBER DIMENSIONS APPROX D1 MALE THREAD D2 FEMALE THREAD WEIGHT APPROX
type D(mm) L(mm) inch inch kg
SG1-NPT3/4 22.5 93.5 M33*1.5 3/4" NPT 1.12
SG1-BSP3/4 25.5 93.5 M33*1.5 3/4" BSP 1.12
SG1-NPT1 22.5 93.5 M33*1.5 1" NPT 1.09
SG1-BSP1 25.5 93.5 M33*1.5 1" BSP 1.09
