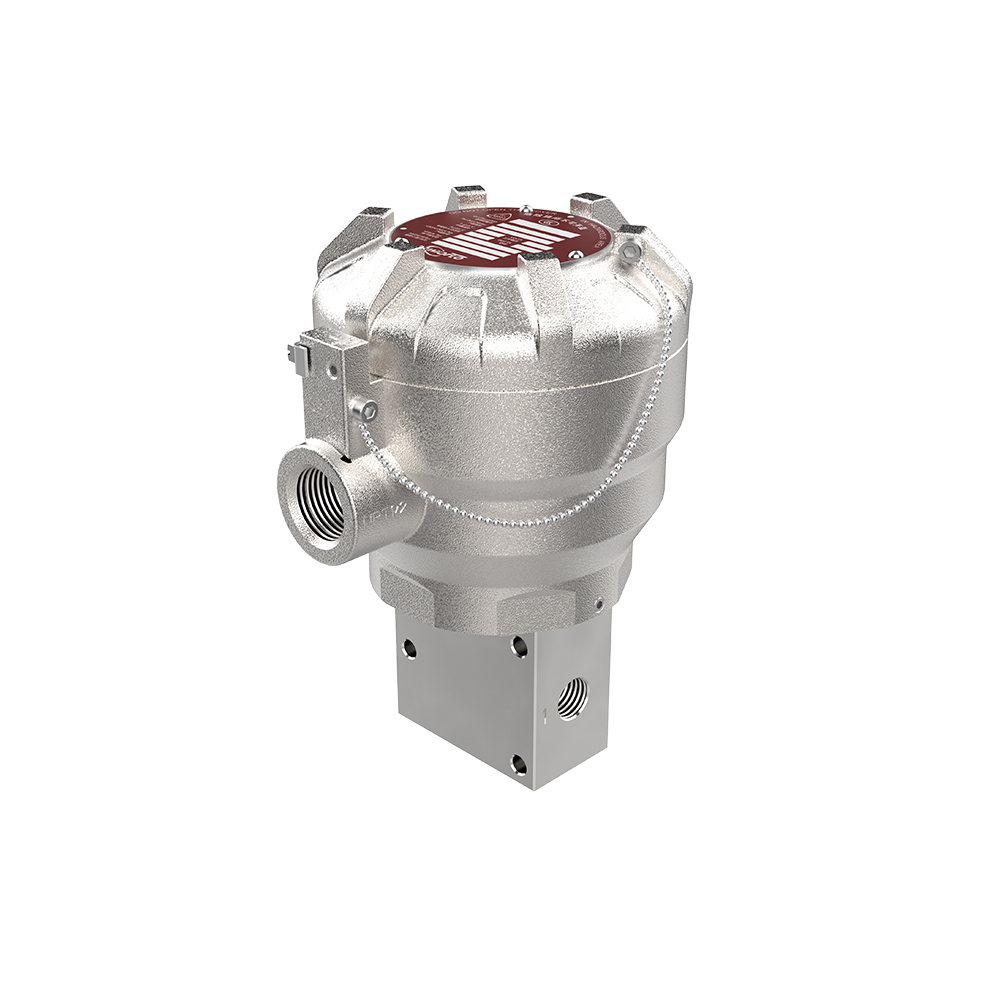

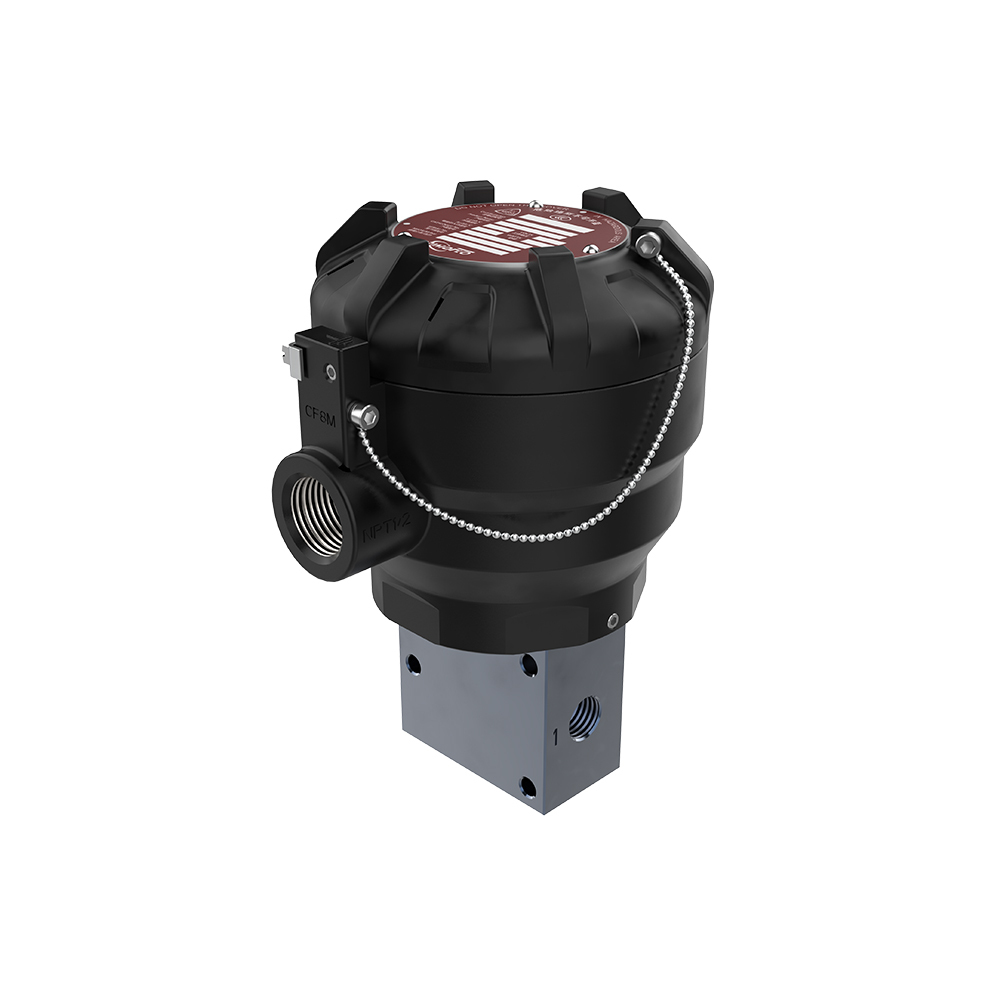

06-9 3/2-Way 1/2" Direct-Acting Solenoid Valve

The 069‑Series are versatile direct‑acting solenoid valves built for high‑flow pilot service with zero minimum operating pressure requirement.

Their balanced poppet design achieves high flow capacity at low power consumption. With proprietary construction and complete safety certifications, the valves endure severe industrial process conditions, well‑suited for power plants, refineries and chemical processing facilities.

Delivering an ultra‑long service lifespan, they integrate smoothly with our custom‑engineered solution portfolio, such as actuator control assemblies, redundant control systems and bypass panels.

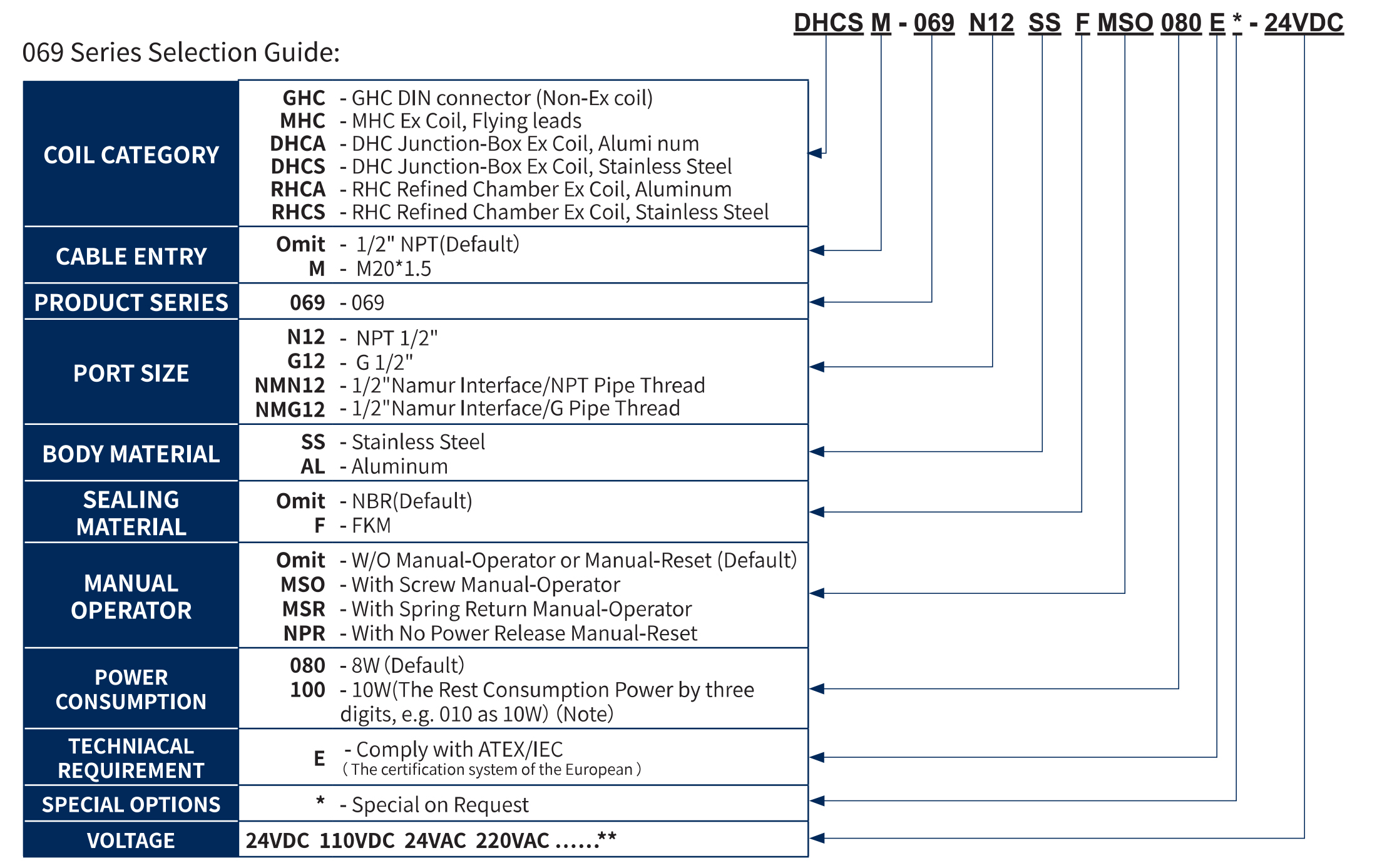

*Special options are available upon the requirement.
**ATEX/IEC certified is only available for 24VDC, 220VAC.

FEATURES AND BENEFITS

• The valves are certified according to IEC 61508 functional safetydata and have SIL-3 capability (TUV)
• Direct acting operated and balanced poppet design
• Explosion-proof operators DHC series coils special designwith magnetic frame embedded
• Can be mounted in any position without affecting operation
• Excellent performance in low temperatureoperation conditions
• Wide pressure ranges and no minimum operating pressure required

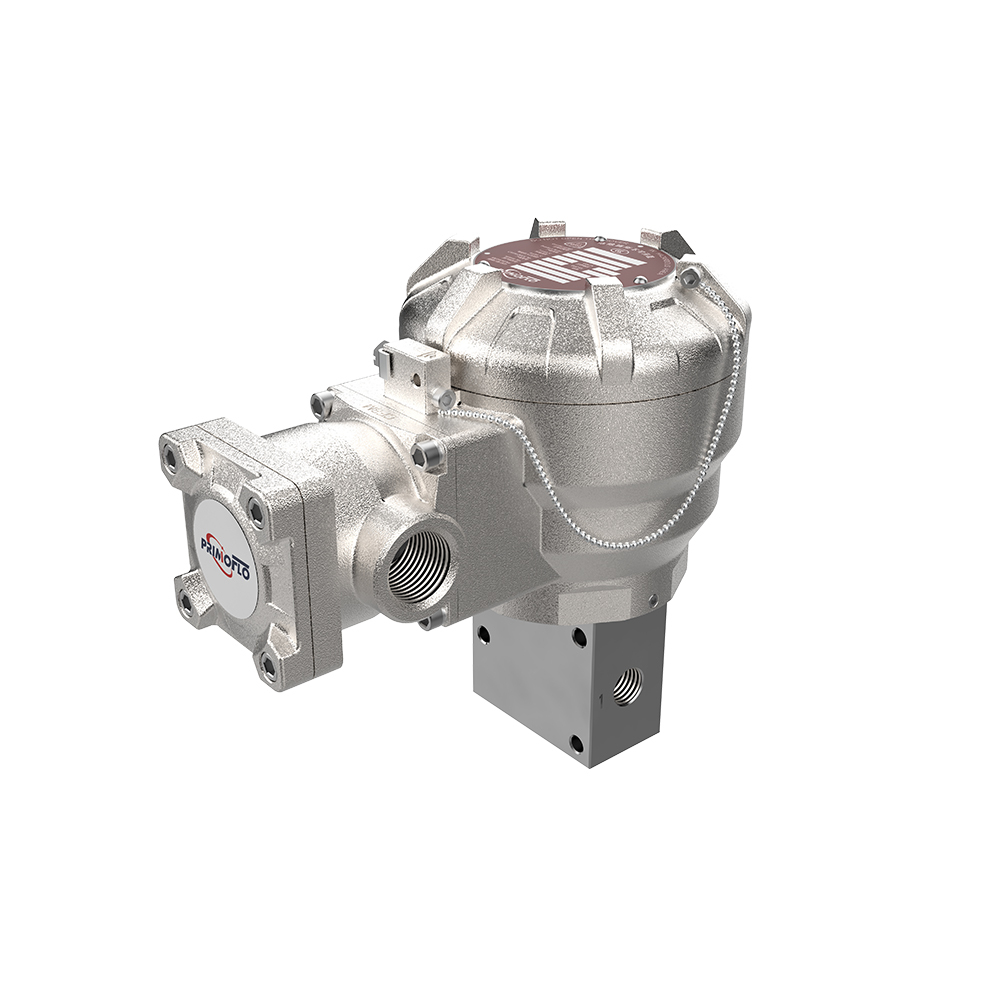

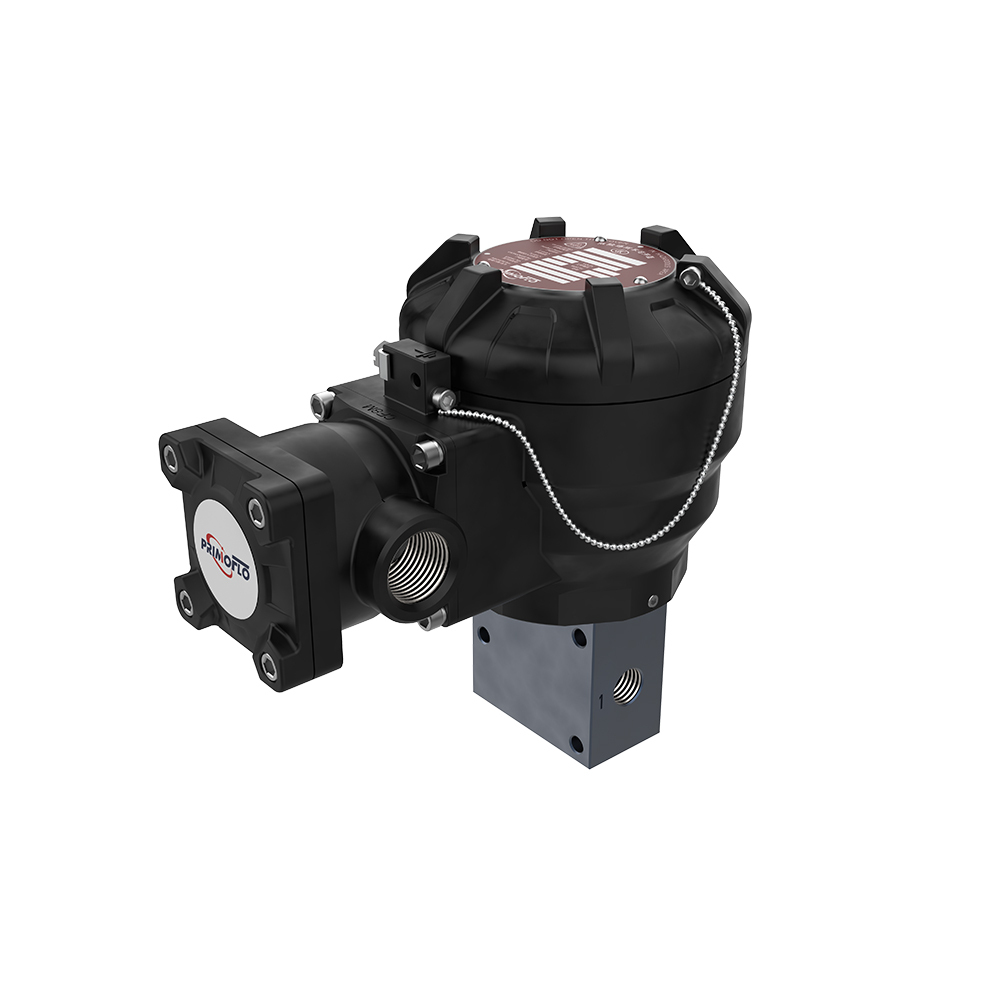

• Manual-operator or Manual-reset are optional
• Double flow direction are available on request
• Theexplosion-proof DC coils are equipped with a built-in integratedsurge protection device
• All valves are provided with a specific exhaust protector
• Coils have class H insulation material
• Meeting various international certifications: NEPSI, EAC, ATEX, IECEx

• Actuation Control
• Redundant System
• Pneumatic Systems
• Safety Control
• Automation Control
