06-3 3/2-Way 1/4" Direct-Acting Solenoid Valve

Ordering Code Builder

Coil

Entry

Series

Port

Body

Manual

Power

Approval

Special

Voltage

DHCS

24VDC

Selection Code Fields

Field

Code / Choices

Selection meaning

Notes

Coil Category

GHC / MHC,   XHCA / XHCS,   DHCA / DHCS,   RHCS

Non-Ex connector coils; Ex flyinglead coils; Ex d junction box with Ex m coil; junction-box Ex coil; refined chamber Ex coil.

Aluminum or stainless-steel enclosure depends on suffix. See coil category matrix below.

Cable Entry

Blank = 1/2" NPT
M = M20 x 1.5

Threaded cable entry selection.

GHC use Form A connector; Ex junction-box coils supplied without cable gland.

Product Series

063

06 Series Type 3 product series code.

Use 063 in the ordering code.

Port Size

N14 = NPT 1/4"
G14 = G 1/4"

Process / pneumatic port connection.

Confirm thread standard with project piping or manifold interface

Body Material

SL

CF3M Stainless Steel.

Standard material for listed configuration.

Manual Operator

Blank / MSO / MSR / NPR / NPO

No manual override/reset;
Screw-type manual override;
Spring-return manual override;
De-energized-operable manual reset;
De-energized-locked manual reset

Select according to site operation and safety philosophy

Power Consumption

018 / 025 / 030 / 035 / 060 / 080

Coil power level selection

Power by three digits, e.g. 018 = 1.8W.

Solenoid Certification

E = ATEX Certified
G = IECEx Certified

Hazardous-area certification selection for the solenoid coil.

Select according to project or site requirements.
Certification may vary by configuration.

Special Option

*

Special on request.

Confirm with ONENESS before order release.

Voltage

24VDC / 110VDC; 24VAC / 220VAC / ...

Rated coil voltage.

Allowable voltage fluctuation: -15% to +10% of rated voltage.

Technical Specifications

Item

Specification

Operation principle

Direct-Acting

Media

Air-inert gas, water, light oil

Ambient temperature

-13°F to 149°F (-25℃ to 65℃)

Media temperature

-13°F to 149°F (-25℃ to 65℃)

Operating pressure differential

0 - 145 psi (0 - 10 bar)

Flow coefficient

0.47 Cv (0.40 Kv m³/h / 6.67 Kv L/min) - 1/4"

Body material

CF3M Stainless Steel

Application environment

Indoor / Outdoor

Installation

Any Position

IP rating

IP65 / IP66 / IP67

Coil Category Matrix

Code

Coil category / enclosure

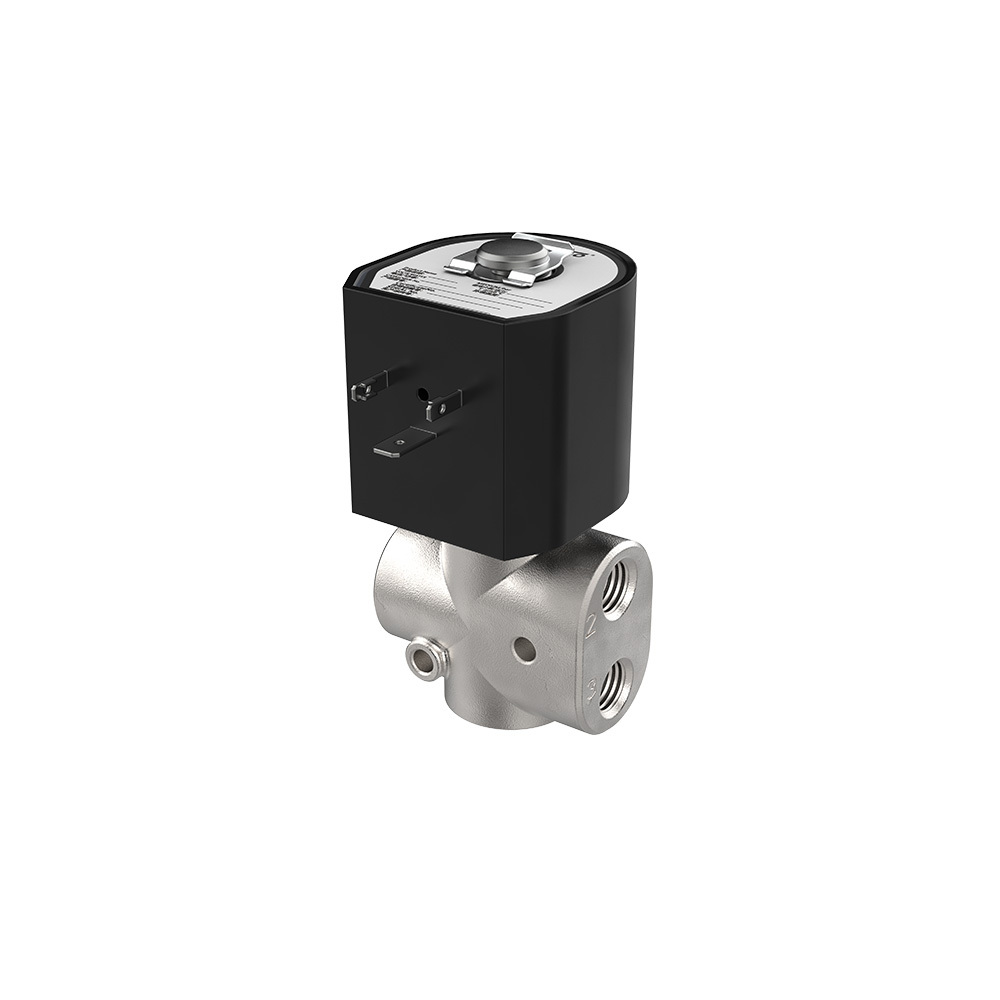

GHC

Non-Ex coil with connector

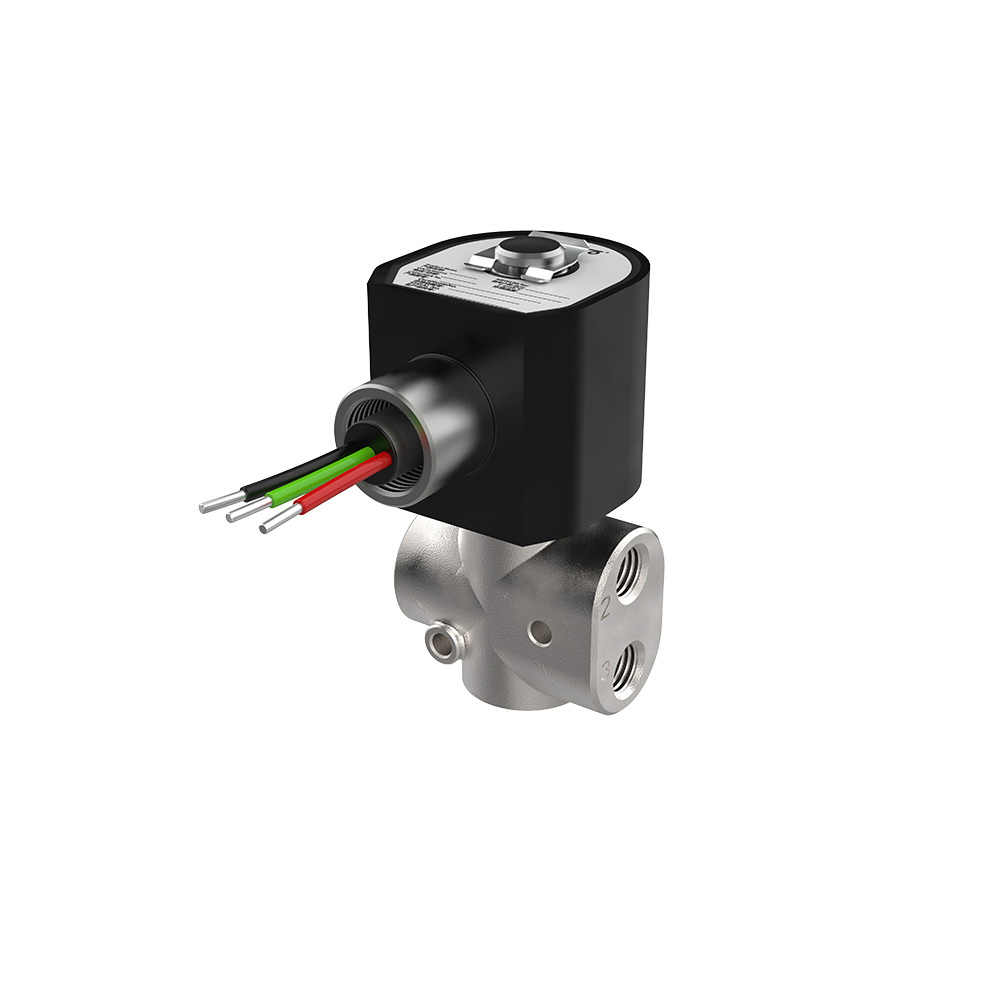

Ex coil, flying leads

XHCA

Ex d junction box with Ex m coil, aluminum

XHCS

Ex d junction box with Ex m coil, stainless steel

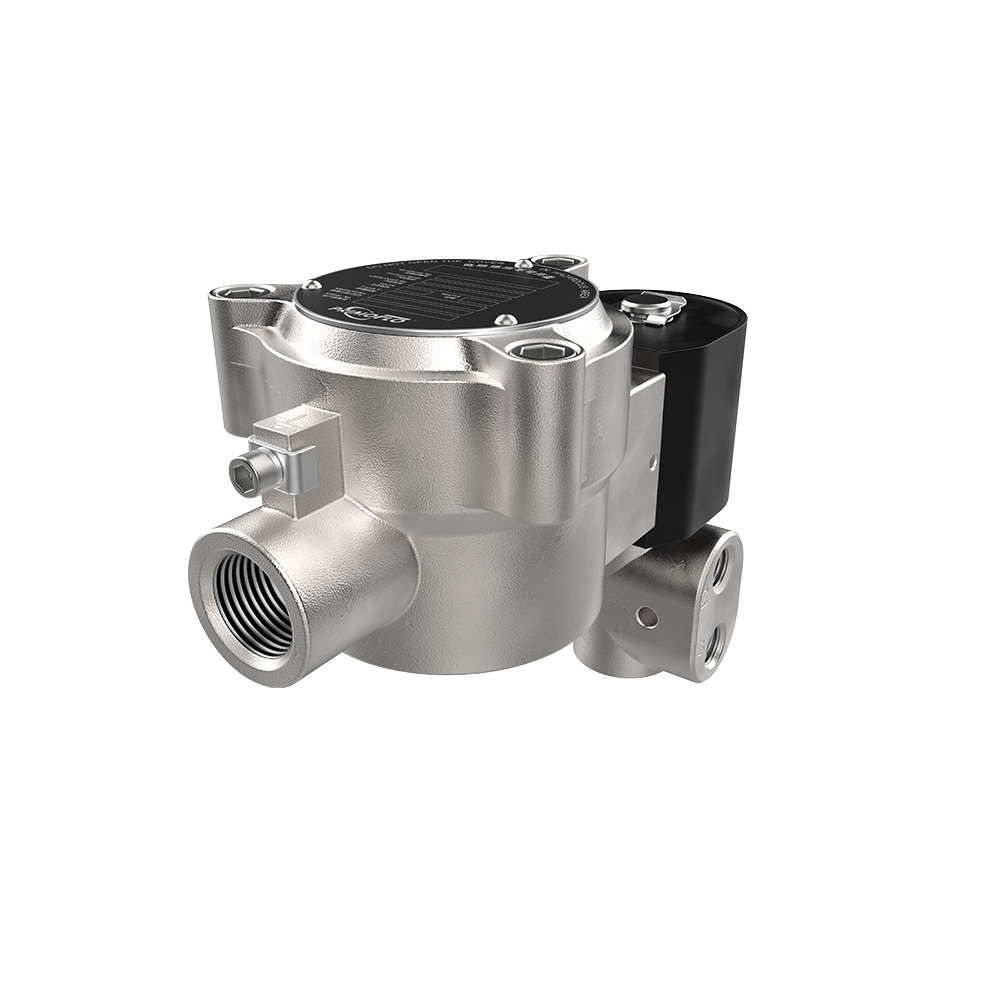

DHCA

Junction-box Ex coil, aluminum

DHCS

Junction-box Ex coil, stainless steel

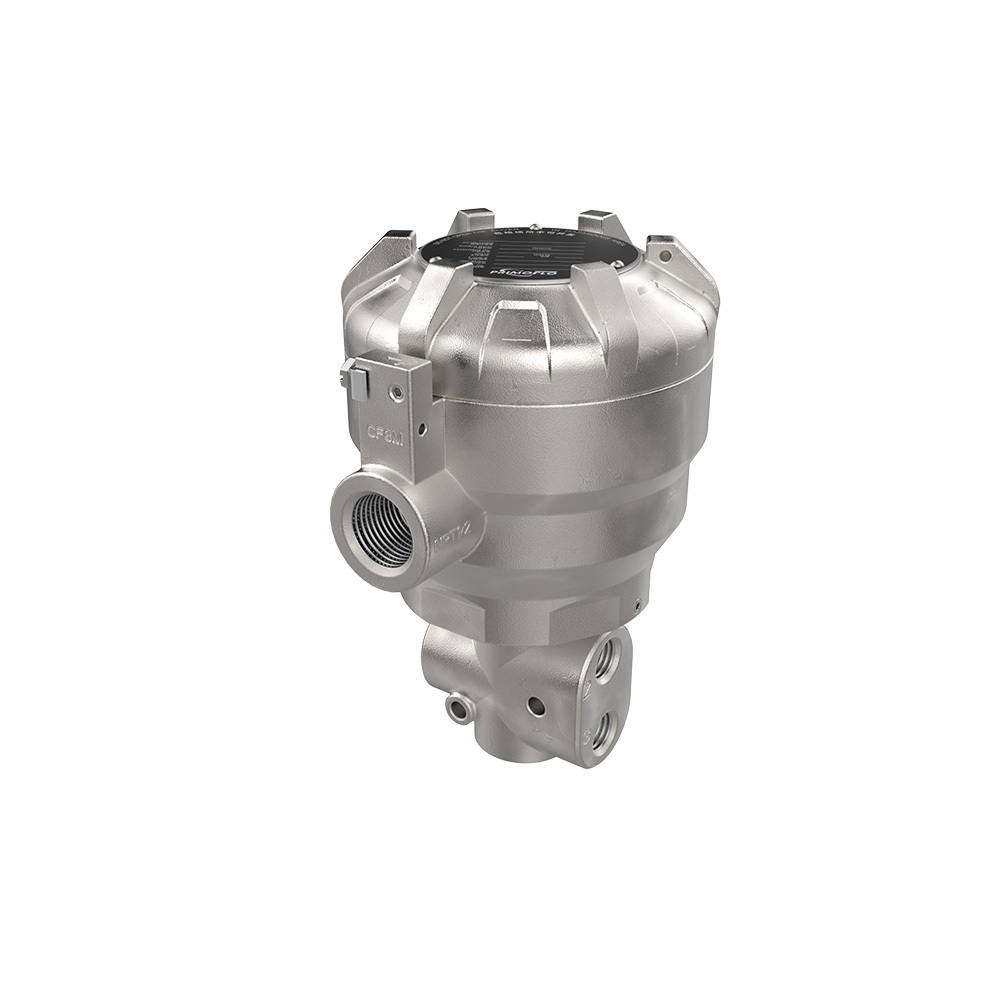

RHCS

Refined chamber Ex coil, stainless steel

Solenoid Operators

Class of insulation

DC watts

AC watts

Standard voltage

1.8-6W

1.8-8W

DC: 12-240V;   AC: 24V- 440V AC / 40-60Hz

Explosion-Proof Marking Reference

Operator family

Gas marking

Dust marking

MHC

Ex mb IIC T6...T3 Gb

Ex mb IIIC T85℃...T170℃ Db

XHC

Ex db mb IIC T6...T3 Gb

Ex mb tb IIIC T85℃...T170℃ Db

DHC / RHC

Ex db IIC T6...T4 Gb

Ex tb IIIC T85℃...T135℃ Db
