For power equipment such as power transformers and reactors, vacuum extraction and drying filtration, vacuum oil injection, and leakage rate testing.
Main Application
Technical Parameters
Type Introduction
|
VTD |
-X1 |
-X2 |
-X3 |
-X4 |
|
Pumping rate(m³/h) |
500 |
1(one stage) 2(two stages) 3(three stages) |
F (With frequeney converter) / (Without frequeney converter) |
A(Full automatic) / (Manual operation) |
|
1000 |
||||
|
2000 |
||||
|
4000 |
||||
|
6000 |
||||
|
8000 |
-X1: Maximumpumping rate
-X2: Roots pumpseries
Technical data of Vacuum Unit
|
NO |
Type |
Pumping rate/(m3/h) |
Ultimate vacuum/mbar |
Initial Breakdown voltage/kV |
Connection for vacuum pump |
Rough time(to reach0.4mbar)/min |
Cooling method |
|
1 |
VID-500 |
450 |
0.01 |
5.5 |
DN50 |
82 |
|
|
2 |
VID-1000 |
1000 |
0.01 |
8.5 |
DN80 |
66 |
|
|
3 |
VID-2000 |
2000 |
0.01 |
13 |
DN80 |
52 |
|
|
4 |
VID-4000 |
3900 |
0.01 |
26 |
DN100 |
35 |
|
|
5 |
VID-6000 |
5600 |
0.01 |
38 |
DN150 |
26 |
|
|
6 |
VID-8000 |
8200 |
0.01 |
52 |
DN200 |
20 |
Note:These parameters remain effective for a transformer filled with 60 cubic meters of oil.Vacuum Unit anc be mad according to customer requirments
Technical Features
Vacuum System
The system incorporates frequency conversion technology to operate the Roots pump under atmospheric pressure startup conditions, enhancing operational flexibility and energy efficiency.
Multiple vacuum pump connections can be designed into the equipment, enabling simultaneous evacuation via several devices to accelerate the vacuum-drawing process.
High-efficiency condensers and buffer devices are installed in the vacuum pipeline to ensure stable and reliable operation while preventing backflow or contamination.
Smoke Extraction Device
A smoke collection system is integrated to significantly reduce lampblack emissions, improving environmental compliance and workplace safety.
Electrical Control
Siemens PLC (Programmable Logic Controller) is employed for precise, automated, and reliable control of the entire system.
Additional Features
Precision-machined components and the use of internationally renowned brands ensure high mechanical and electrical reliability, minimizing maintenance costs and guaranteeing consistent operational efficiency.

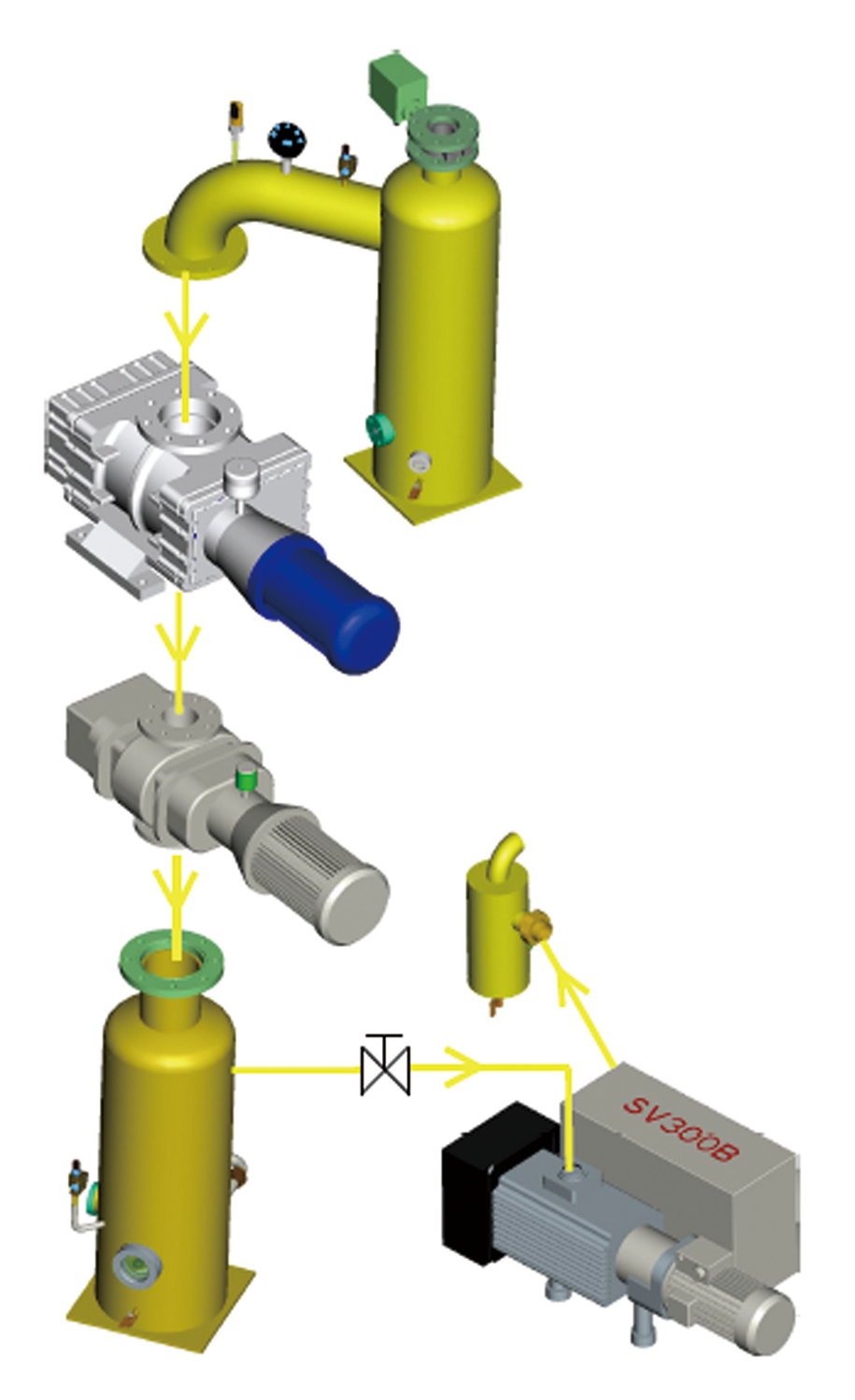

Workflow Diagram
