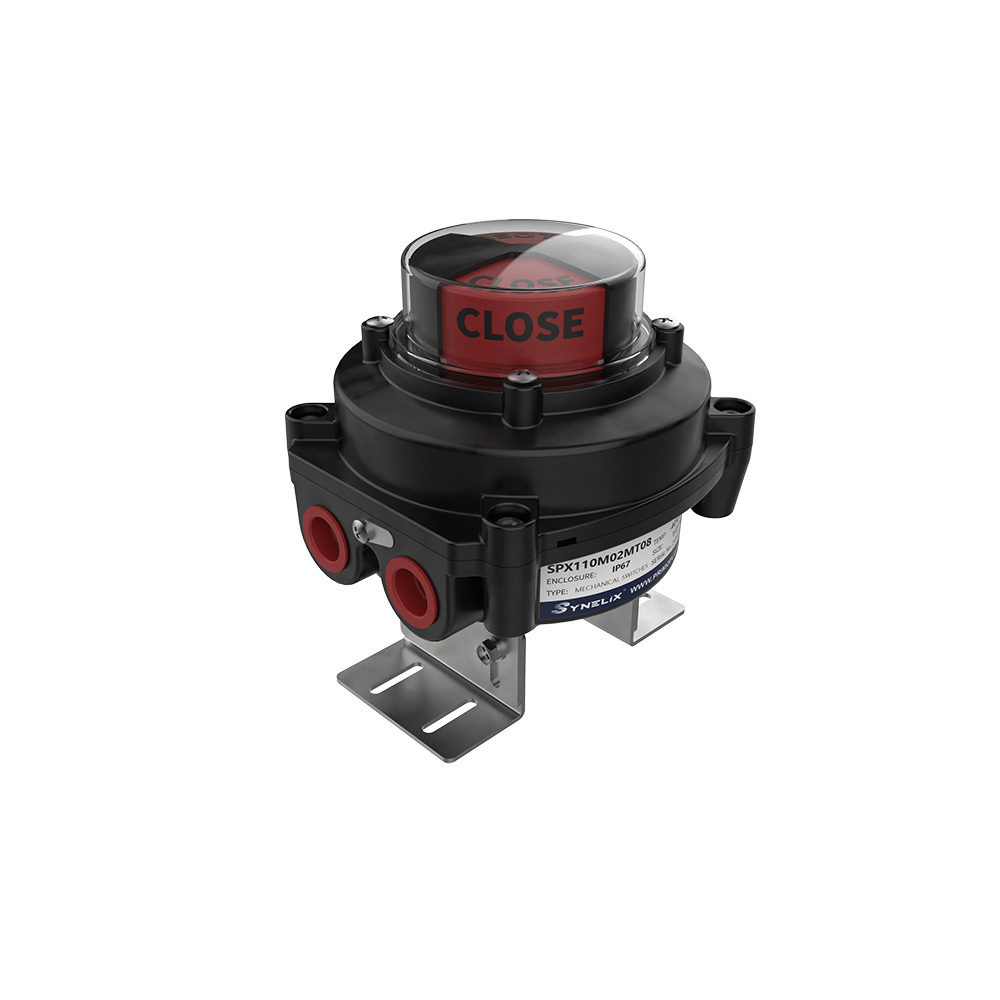

SPX 300 Waterproof Valve Position Monitor

Ordering Code Builder

Coil

Type

Material

Cableentry

Visual Display

Temperature

Switch Qty

Manual

Switch Type

Fixing bracket

Bracket material

Special

SPX

300

2

*

Selection Code Fields

Field

Code / Choices

Selection meaning

Notes

Product Series

SPX = SPX Series

Product series selection

SPX identifies the Synelix® SPX valve position monitor / transmitter series

Product Type

300 = Type 300

Product type selection

Type 300 is the standard non-explosion-proof version for waterproof valve position monitoring applications

Enclosure/

A = Aluminum alloy
S = 316 Stainless steel
SL= 316LStainless steel

Manifold base material selection

Select according to corrosion resistance, weight and project requirements

Cable entry

Blank = 1/2"NPT(Default)
N34 = 3/4"NPT
G12 = G1/2"
M20 = M20*1.5

Cable entry thread selection

Select according to site wiring, cable gland or conduit connection requirements. Ensure the matched cable gland or plug maintains the required enclosure protection rating

Visual Display

Blank = 90° Green OPEN / Red CLOSED (Default)
B = 90° Black OPEN / Yellow CLOSED
Y = 90° Yellow OPEN / Black CLOSED
R = 90° Red OPEN / Green CLOSED

Visual position indicator color selection

Defines the OPEN / CLOSED color indication for the 90° visual display. Select according to site convention or project requirements. G is the standard configuration

Ambient Temperature

Blank = -25℃ (Default)
N = -40℃

Ambient temperature range selection

Blank indicates the standard ambient temperature version. Select N for low-temperature applications down to -40℃

Switch / Sensor Qty.

Blank = 2 switches / sensors
F = 4 switches / sensors

Switch / sensor quantity selection

Select according to the required number of valve position feedback signals or contact outputs

Switch Type

ES = Mechanical switch, SPDT
ED = Mechanical switch, DPDT
MS = Magnetic proximity switch, SPDT
MD = Magnetic proximity switch, DPDT
PI = Inductive proximity sensor
PN = NAMUR inductive proximity sensor

Switch / sensor technology and contact configuration selection

Select according to the required sensing principle, contact type and control system input. Detailed electrical rating, wiring and temperature range are defined by the sensor code.

Switch Code

Refer to switch code matrix

Specific switch model, wiring, electrical rating and temperature range selection

Select after confirming the switch / sensor type. Electrical rating, wiring and operating temperature vary by code

Fixing bracket

Blank = Adjustable bracket
LA = Rotary-to-linear conversion bracket
Z = Linear-stroke bracket
S = Integrated bracket, 30 × 80 × 30 mm
B = Integrated bracket, 30 × 130 × 30 mm

Mounting bracket type selection

Select according to valve / actuator mounting interface and stroke type. Blank indicates adjustable bracket. Confirm bracket dimensions before ordering

Bracket material

Blank = SS304
W = High-grade carbon steel
S = 316 Stainless Steel
SL = 316L Stainless steel

Mounting bracket material selection

Select according to installation environment, corrosion resistance requirements and project specification. Blank indicates SS304 as standard.

Special Option

*

Special on request

Confirm with ONENESS before order release

Technical Specifications

Item

Specification

Product function

Valve open / close indication and feedback

Temperature range

-40℃ to +80℃

Housing material

Aluminum alloy powder coated，CF8M, CF3M

Protection

IP66 / IP67

Cable entry

2x N12 / N34 / G1/2 / M20

Mounting

NAMUR standard bracket mounting

Design features

Hardened stainless-steel shaft and bushing, wear-resistant

Coil Category Matrix

Code

Configuration / enclosure

ES/ED, SPDT, 3-wire, 16 A @ 125 VAC / 10 A @ 30 VDC, -25℃ to +70℃

PN, NC, 2-wire NAMUR, 8.2 VDC, -25℃ to +70℃

PI, P+F, NO, 2-wire, 5–60 VDC, -25℃ to +85℃

MS/MD, NO, 3-wire, 5–240 VAC/DC, -20℃ to +60℃

ES/ED, SPDT, 3-wire, 16 A @ 250 VAC, -40℃ to +85℃

PN, P+F, NC, 2-wire NAMUR, 8 VDC, -40℃ to +100℃
