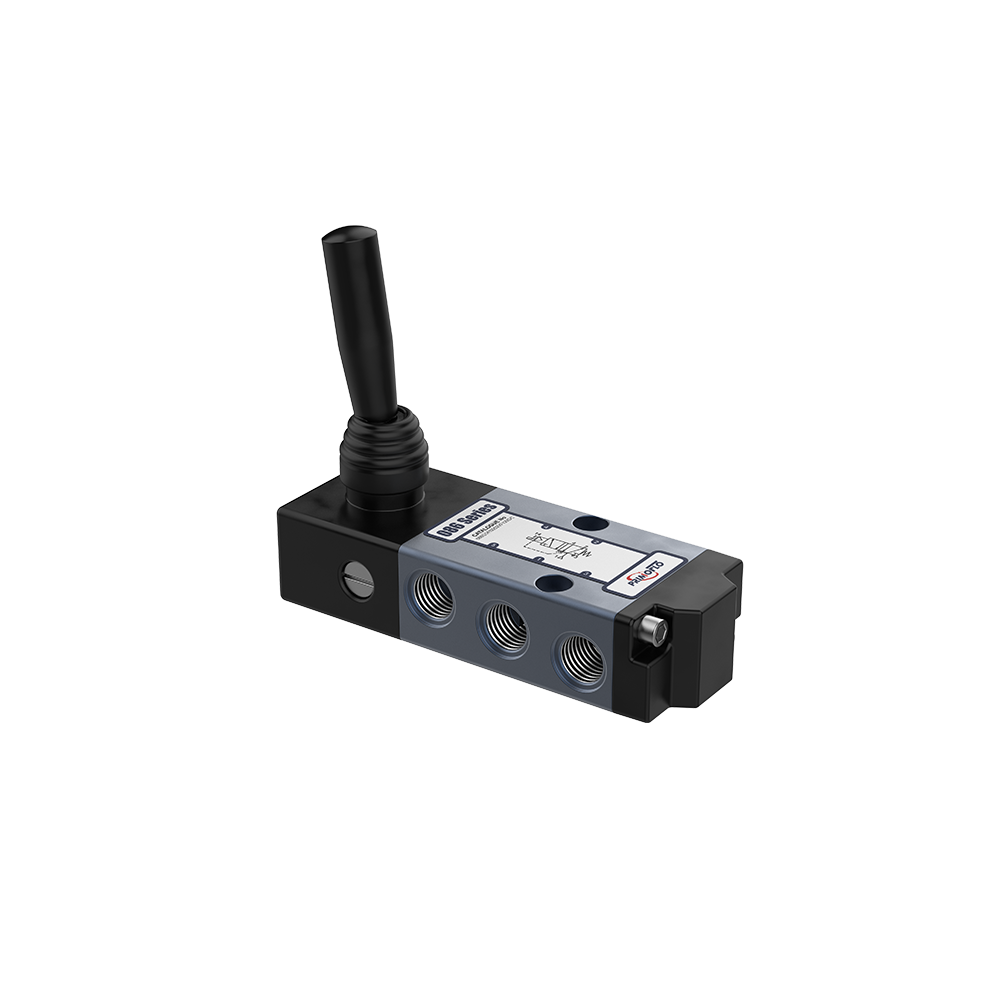

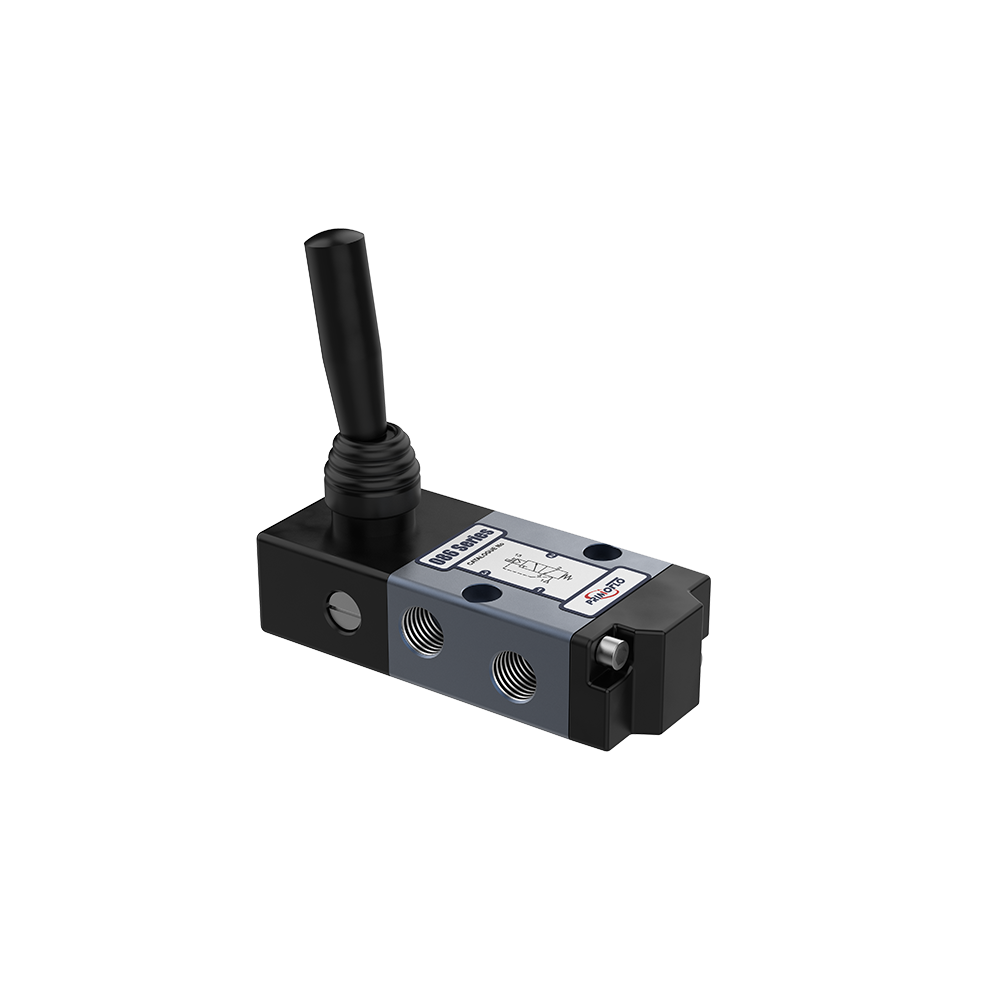

This manually operated spool valve platform handles pneumatic switching and operator‑actuated directional control for machine interfaces. Built with a sturdy metal body and precise mechanics, it offers low actuation effort and stable reliable operation under harsh industrial conditions.
|
Ordering Code Builder |
||||||
|
Type |
Series |
Port |
Function |
Body |
Return |
Special |
| M |
086 |
N14 | 01 | SS | T | * |
|
Selection Code Fields |
|||
|
Use the code fields below to define the mechanical operator, port connection, function type, body material, return method and special requirements. |
|||
|
Field |
Code / Choices |
Selection meaning |
Notes |
|
Product Type |
M = Handle-operated / mechanical valve |
Manual actuation structure for mechanical directional control. |
Use M for the 086 Series mechanical valve. |
|
Product Series |
086 |
M086 Series mechanical spool-valve platform. |
Use 086 in the ordering code. |
|
Port Size |
N14 = NPT 1/4", G14 = G 1/4" |
Process / pneumatic port connection size. |
Confirm thread standard with project piping or manifold interface. |
|
Function Type |
01 - 3/2 |
Valve function, position and return configuration selection. |
Select according to the required pneumatic logic and operator reset philosophy |
|
Body Material |
AL = Aluminum (-25℃) |
Valve body material selection. |
Choose according to environment, corrosion resistance and temperature requirements. |
|
Return Method |
Blank = Manual reset (default) |
Manual-reset or spring-return selection. |
Select according to site operation and safety philosophy. |
|
Special Option |
* |
Special on request. |
Confirm with ONENESS before order release |
|
Technical Specifications |
|
|
Item |
Specification |
|
Operation principle |
Manual operation |
|
Media |
Gas / compressed air |
|
Ambient temperature |
-40℃ to +65℃ |
|
Media temperature |
-40℃ to +65℃; flow table lists -60℃ to +65℃ by configuration |
|
Operating pressure |
0 - 10 bar |
|
Port size range |
1/4" to 1" |
|
Valve structure |
Spool structure |
|
Body material |
Aluminum / stainless steel |
|
Sealing material |
NBR / VMQ |
|
Application environment |
Indoor / outdoor |
|
Installation |
Any position |
|
Material Reference |
|
|
Component |
Material |
|
Valve body |
Aluminum / stainless steel |
|
End cover |
Aluminum / stainless steel |
|
Pilot valve body |
Aluminum / stainless steel |
|
Spool |
Aluminum / stainless steel |
|
Spring |
Stainless steel |
|
Seals |
NBR / VMQ |
