BREAKAWAY TL-150HS

SKU:

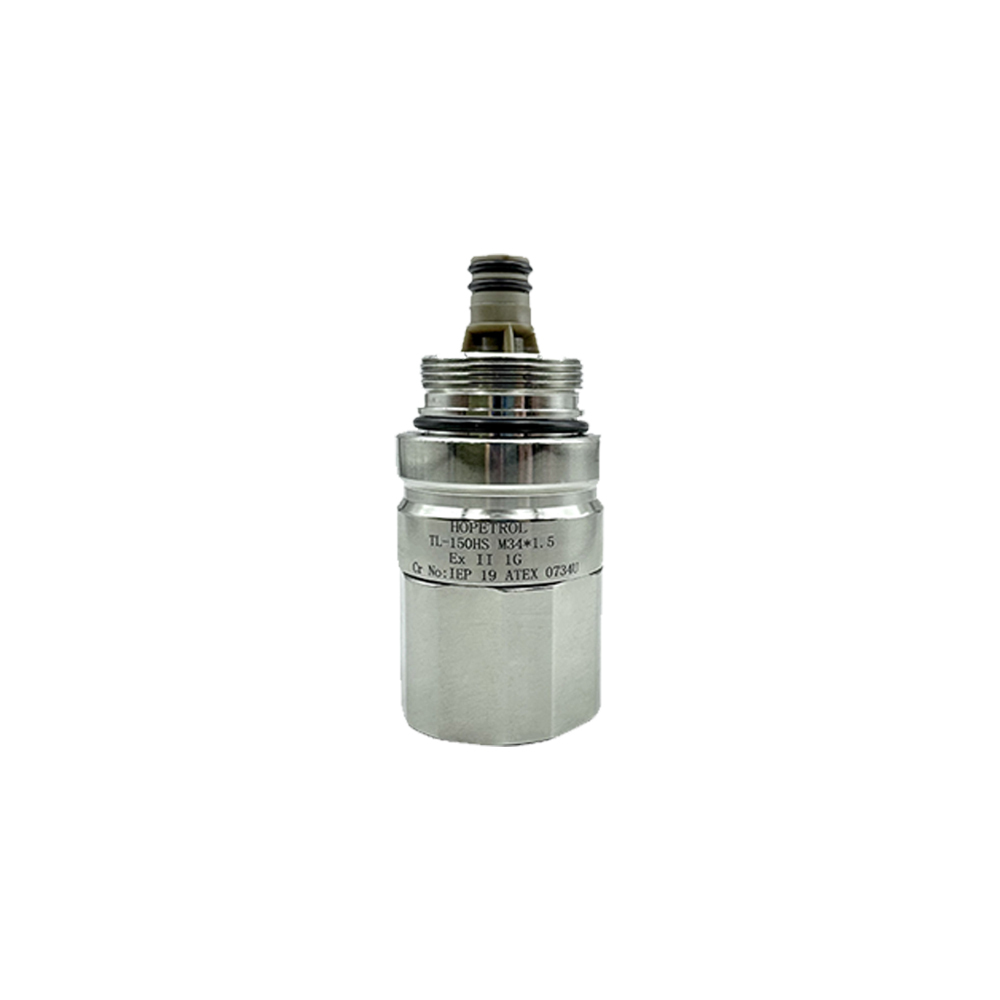

The TL-150HS self-sealing breakaway coupling is designed for assembly between vapour recovery nozzle and COAX hose. Separates at axial or angular pull-off forces from 800N(80kg) up to 1500N(150kg). All parts 100% factory tested. The break sleeve helps protect the break-away part in the event of a drive-off.
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • THREAD:
    M34*1.5
  • CERTIFICATION:
    UL
    ATEX
    Please select the information you wantX
Quantity:
-
+
  • BREAKAWAY TL-150HS
  • BREAKAWAY TL-150HS
1/1
  • BREAKAWAY TL-150HS
  • Description
MATERIAL
  • Body: Aluminum
  • Inner parts: Fuel resistance plastic and stainless steel
  • Seal: NBR & FKM

FEATURES  AND  BENEFITS
  • UL and ULC listed for use in gasoline, diesel, and up to 85% ethanol blends.
  • Thread type: M34×1.5
  • Temperature range: -25°C~60°C
  • Breaking force: 800~1500N
  • Max working pressure: 0.3MPa
  • Resistance: <10⁹ Ω
  • 1 year warranty
