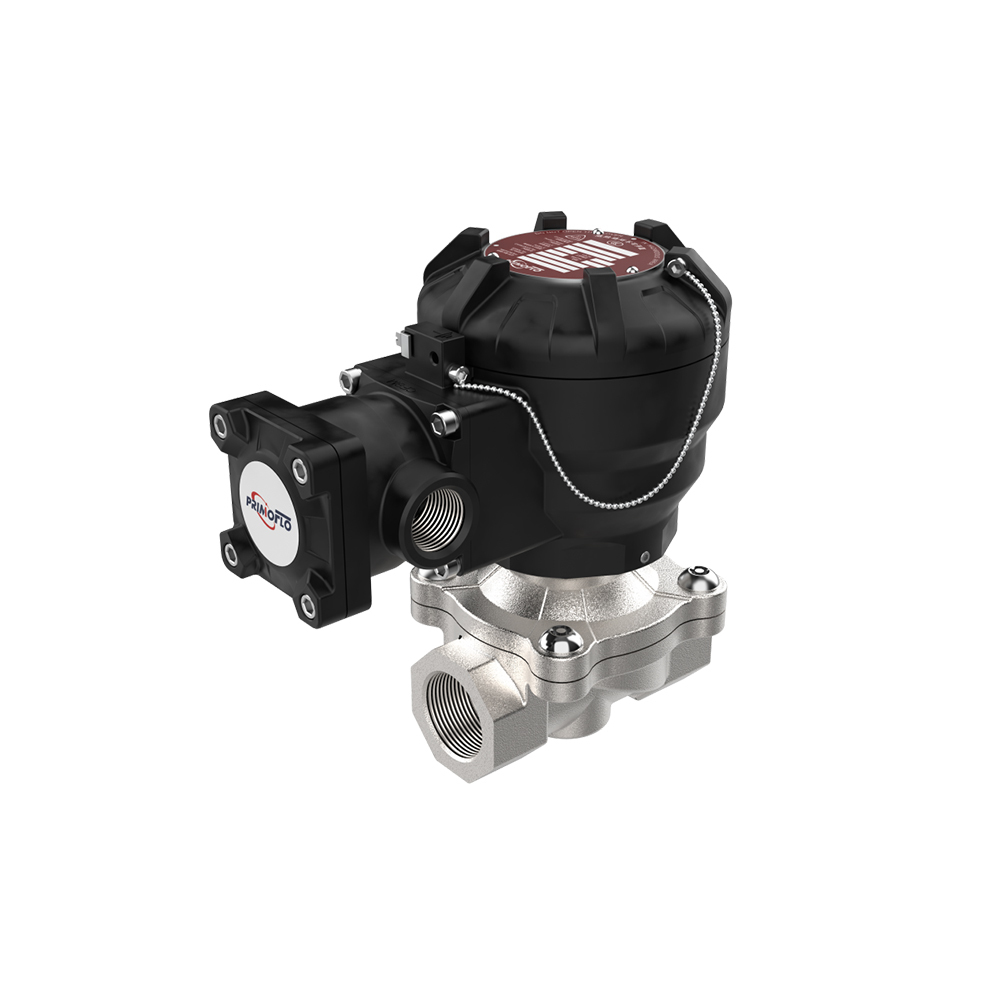

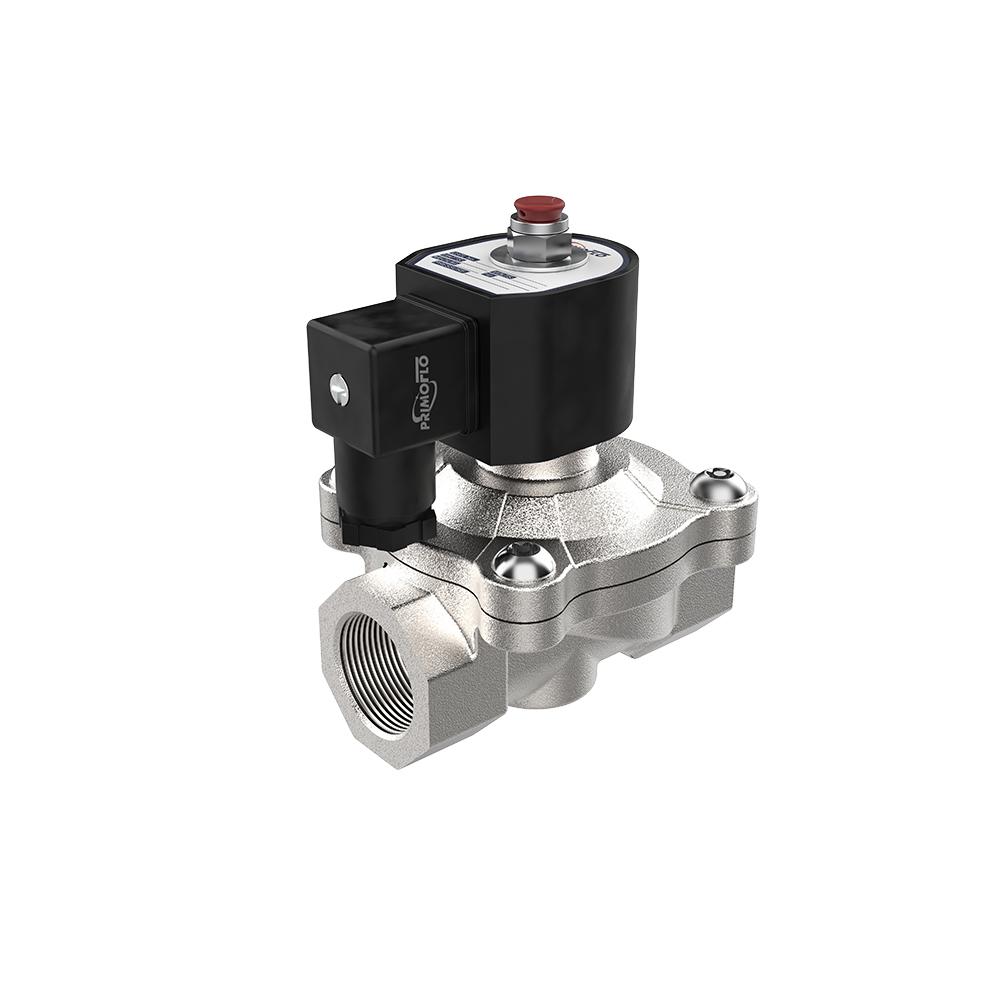

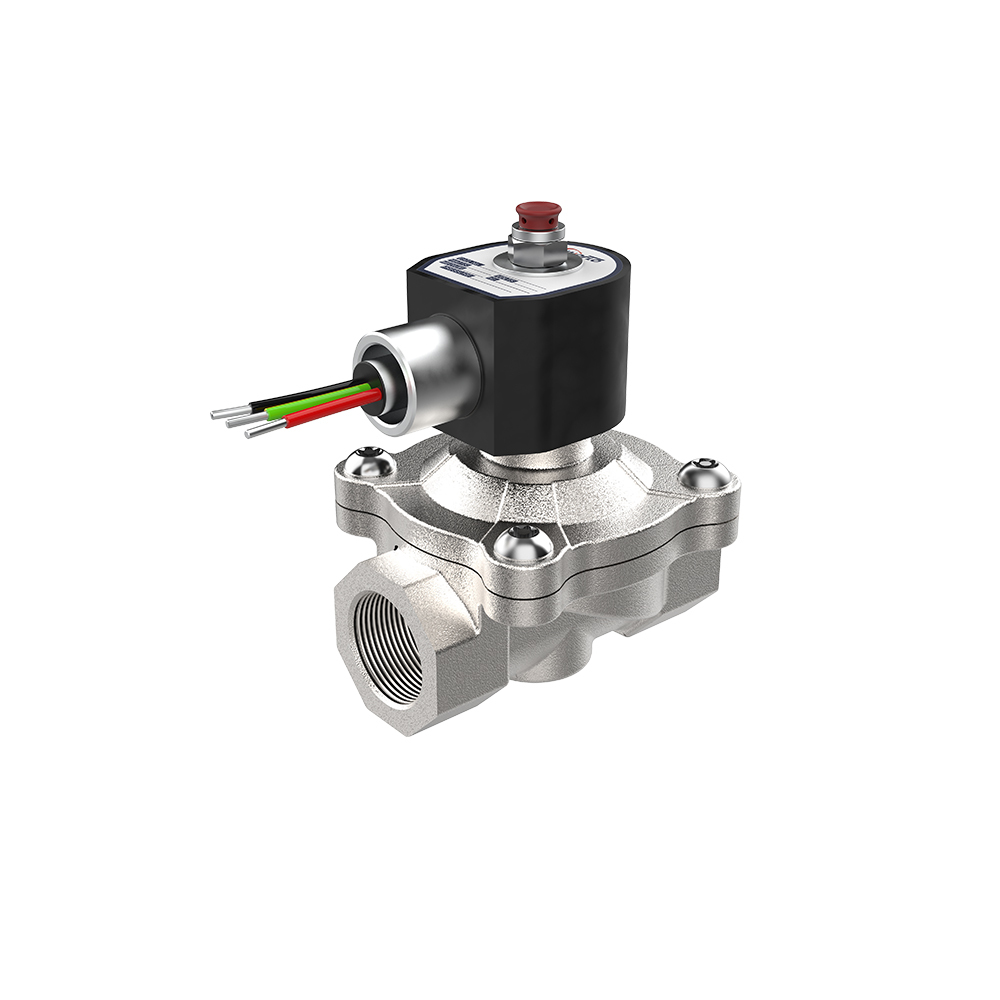

010 Type 2 Semi-Direct-Acting Solenoid Valve

The 010‑Series 2/2‑way semi‑direct‑acting suspended‑diaphragm solenoid valves provide reliable, long‑lasting control for broad‑ranging applications.

With compact construction, they automate air, inert gas, water, oil and other seal‑compatible gases and liquids. Multiple pressure ratings, port sizes and elastic seal material options ensure precise regulation, extended service life and low internal leakage.

Built for rugged duty, these valves are well‑suited for car‑wash machinery, air compressors, pumps, laundry equipment and industrial water‑control systems.

FEATURES AND BENEFITS

• The valves are certified according to IEC 61508 FunctionalSafety data and have SIL-3 capability(TUV)
• Pilot operated construction
• Wide pressure ranges, sizes,and no minimum operatingpressure required.
• Available in explosion-proof & non-explosion-proofoperators
• The explosion-proof DC coils are equipped with a built-inintegrated surge protection device.
• Coils have class H insulation material
• Meeting various international certifications: NEPSI, EAC, ATEX,IECEx

APPLICATIONS

• Air compressors
• Industrial water control
• Pumps
• Laundry equipment
• Car wash
