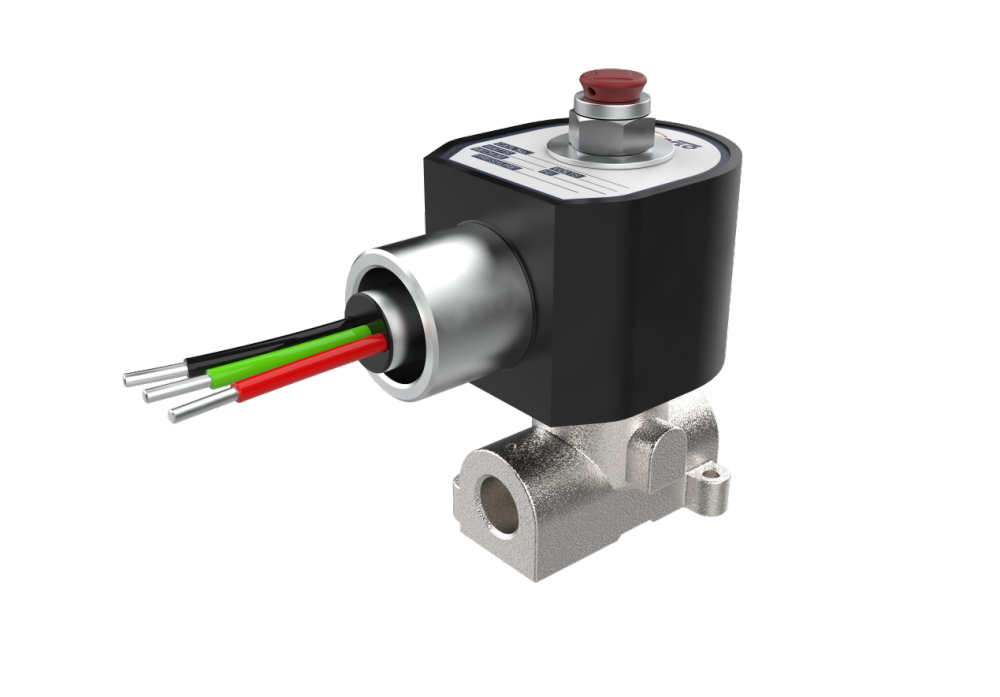

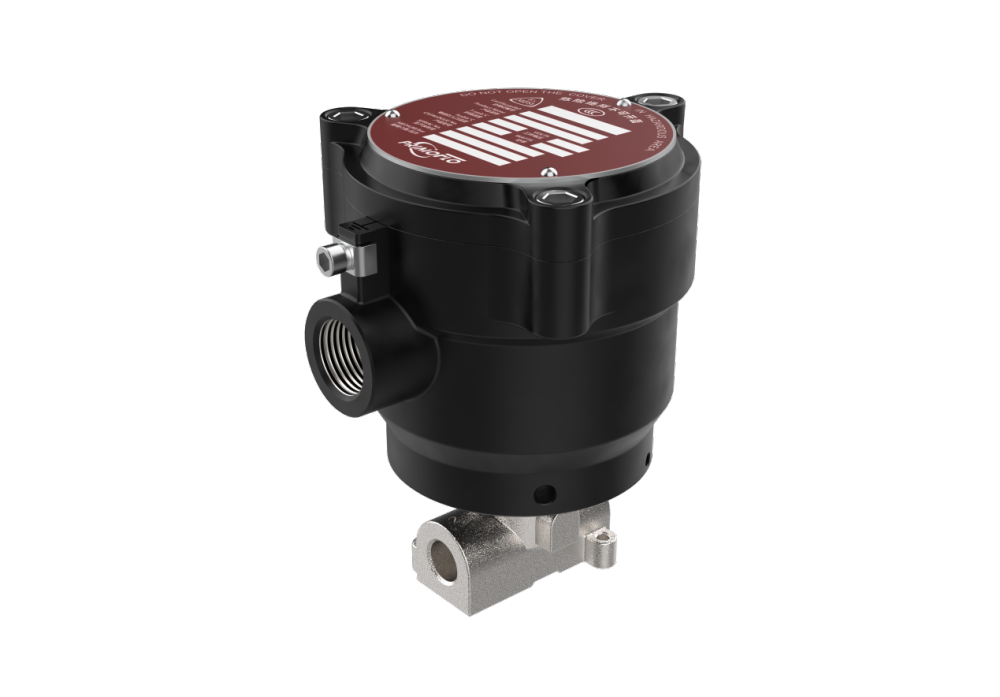

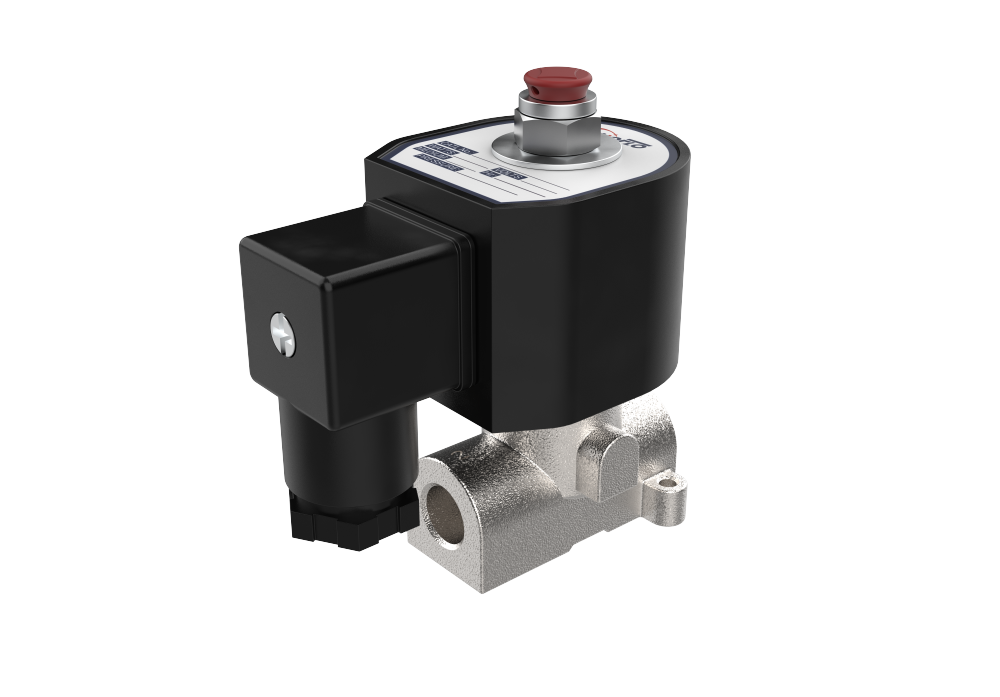

The 001‑Series compact direct‑acting solenoid valves feature an extended continuous‑cycle life for wide‑ranging applications.
Zero‑minimum‑pressure opening enables precise control and consistent dependable performance. Offered in 3/2‑way and 2/2‑way configurations, they process air, water, oil and all seal‑compatible gases and liquids. Manufactured from premium raw materials, the valves sustain stable operation under severe high‑pressure fluid‑control conditions.
They are ideal for car‑wash systems, dishwashing & laundry machinery, pumps, compressors, boilers, burners, food‑processing equipment and many other industrial sectors.

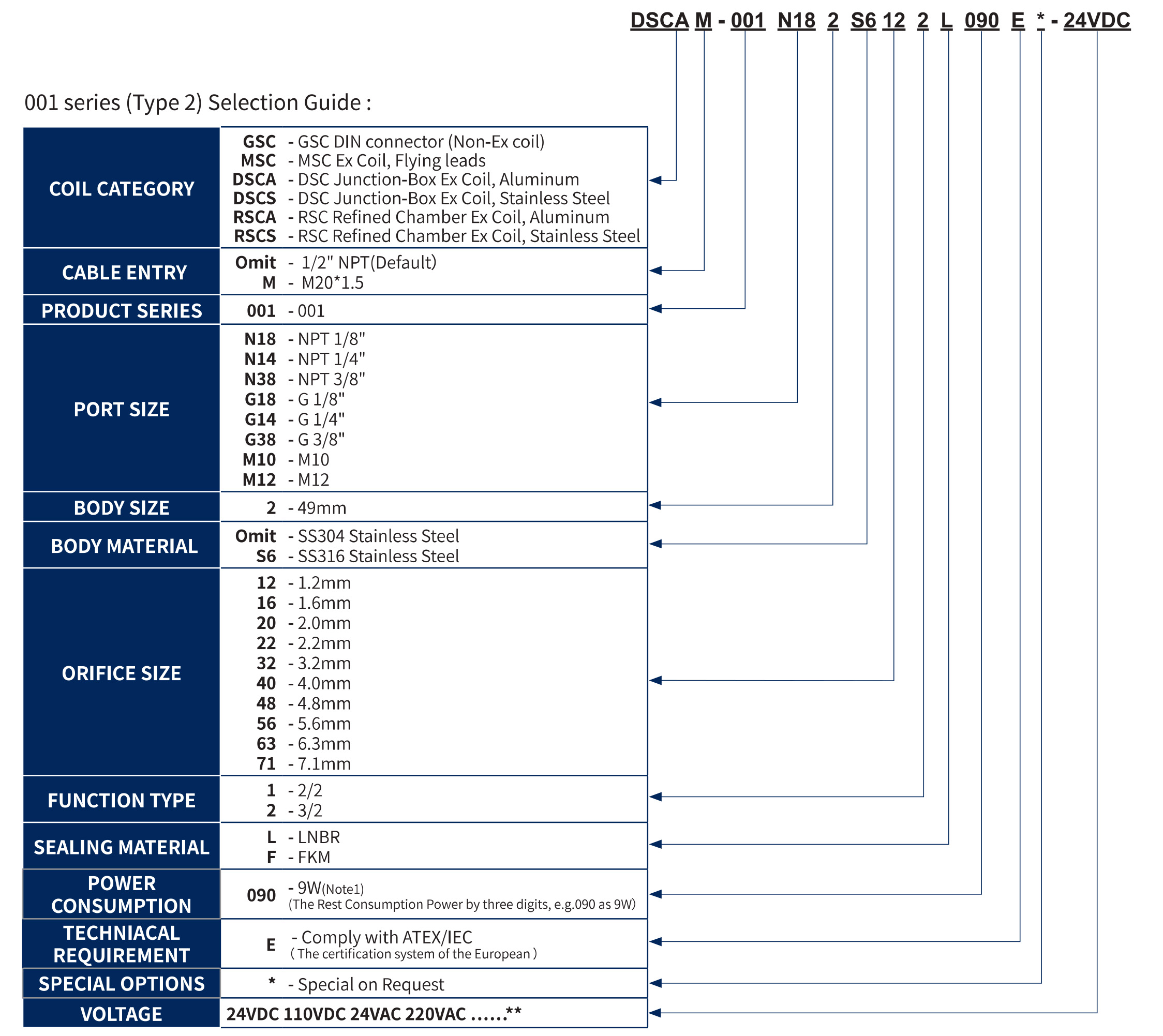

ORDERING GUIDE
*Special options are available upon the requirement.
**ATEX/IEC certified is only available for 24VDC, 220VAC.
FEATURES AND BENEFITS
MATERIALS
|
MATERIALS IN CONTACT WITH FLUID
|
|
|
BODY |
Stainless steel |
|
END CAP |
Stainless steel |
|
CORE AND ARMATURE |
Stainless steel |
|
SPRING |
Stainless steel |
|
SHADING COIL |
Copper |
|
SEALING |
LNBR/FKM |
GENERAL
|
ITEM |
DETAIL |
|
|
MEDIA |
Gas, Water, Light oil |
|
|
PORT SIZE |
NPT 1/8", NPT 1/4", G1/8", G1/4", G3/8", M10, M12 |
|
|
AMBIENT TEMPERATURE RANGES |
Standard |
-40°C ~ +65°C |
|
Options |
-15°C ~ +82°C |
|
|
MEDIA TEMPERATURE |
Standard |
-40°C ~ +60°C |
|
Options |
-15°C ~ +120°C |
|
|
OPERATING PRESSURE DIFFERENTIAL |
0 ~ 53 bar |
|
|
FLOW COEFFICIENT |
0.05 ~ 0.76 Kv m³/h |
|
|
APPLICATION ENVIRONMENT |
Normal Corrosive Area |
|
|
INSTALLATION |
Any Position |
|
|
SEAL MATERIAL |
Standard |
LNBR |
|
Options |
VMQ/FKM |
|
|
VALVE CONSTRUCTION |
Direct Acting |
|
|
BODY MATERIAL |
Stainless steel |
|
|
PROTECTION CLASS |
IP65/IP66/IP67 |
|
|
MANUAL OPERATOR |
2/2,3/2 |
|
