Applicable to low-voltage distribution in residential, commercial, industrial, and other fields.
- Short circuit protection
- Overload protection
- Control function
- Isolation function
|

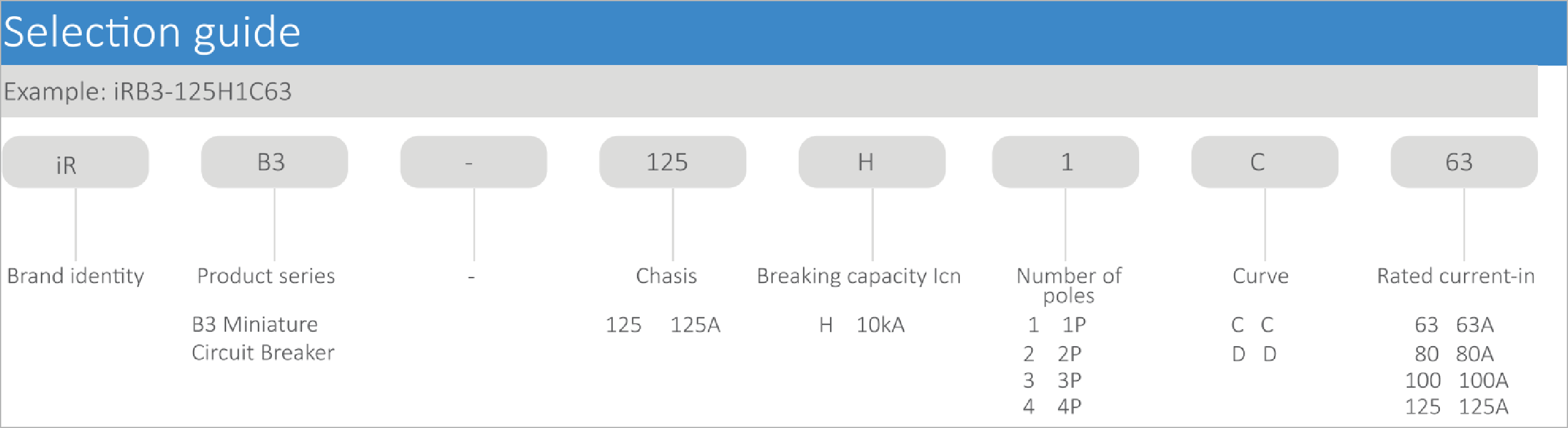

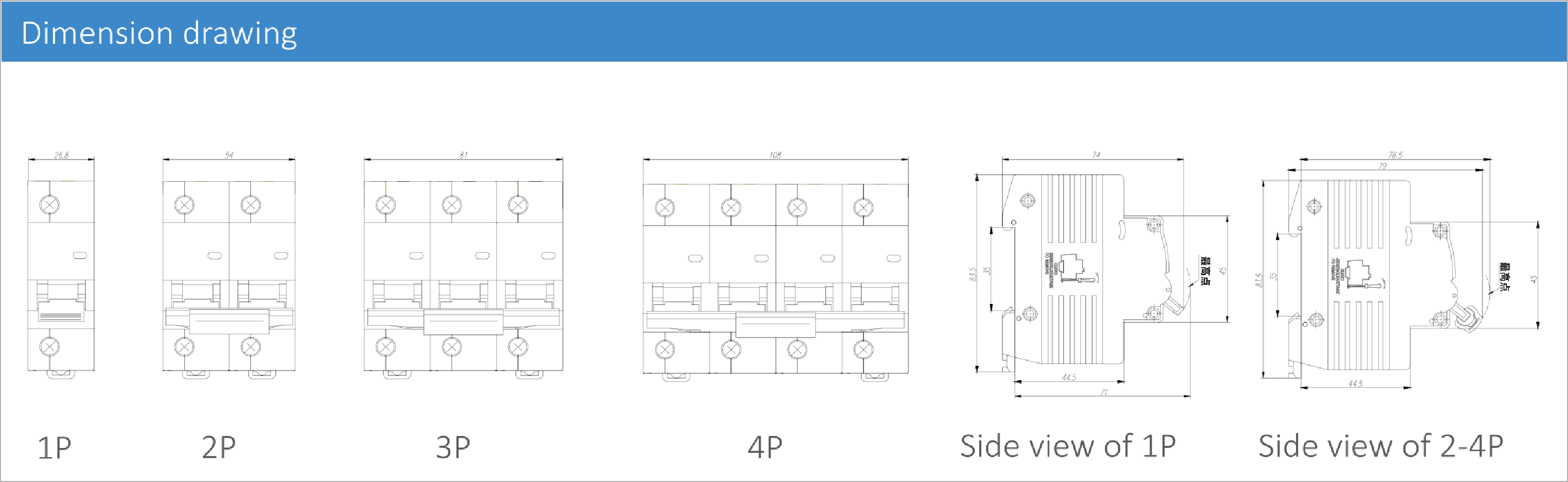

Product Series |
iRB3-125H |
|
|
Standards met |
IEC/EN 60947-2,GB/T 14048.2 |
|
|
Product certification |
CCC,TUV,CE,CB |
|
|
Electrical characteristics |
||
|
Number of poles |
1P,2P,3P,4P |
|
|
Rated current In(A) |
63,80,100,125 |
|
|
Rated voltage Ue (V) |
AC 230V(1P), AC 400V(2P/3P/4P), DC 80V(1P), DC125V(2P) |
|
|
Rated insulation voltage Ui (V) |
500V |
|
|
Rated operating frequency f (Hz) |
50/60 |
|
|
Rated impulse withstand voltage Uimp (kV) |
4 |
|
|
Rated short-circuit capacity lcn |
10kA |
|
|
Rated ultimate short-circuit breaking capacity lcu |
10kA |
|
|
Rated operational short-circuit breaking capacity lcs |
7.5kA |
|
|
Instantaneous break characteristic |
C,D |
|
|
Mechanical characteristics |
||
|
Mechanical lifespan |
10,000 Times |
|
|
Electrical lifespan (In) |
1,500 times |
|
|
Protection level |
Circuit breaker body |
IP20 |
|
Installed in the distribution box |
IP40 |
|
|
Other characteristics |
||
|
Operating temperature |
-40°C~+70°C |
|
|
Storage temperature |
-40°C~+70°C |
|
|
Wiring method |
Top entry, bottom exit |
|
|
Installation direction |
Vertical installation |
|
|
Resistance to damp and heat |
Class 2 (temperature 55C, relative humidity 95%) |
|
|
Wiring |
||||||
|
Current rating |
Screw |
Rated torque (Nm) |
Maximum torque (Nm) |
National Standard Rated Torque (Nm) |
Maximum wiring capacity (mm²) |
|
|
Hard wire |
Soft wire |
|||||
|
63-125A |
M7 |
3.5 |
8 |
3.5 |
50 |
35 |
|
Reference weight (g) |
|||
|
1P |
2P |
3P |
4P |
|
157.8 |
315.6 |
473.4 |
631.2 |
