High reliability
- The product software design has a perfect self-test andfault-tolerant mechanism, which can adapt to the 7* 24uninterrupted operation of loT collection.
Data caching and breakpointresume function
- After the communication is interrupted and restoredfor a short time, data can be continued to betransmitted to the Internet of Things platform.
Modular and convenient access
- The gateway can realize automatic identification of deviceaddresses based on "ad hoc network" technology, withoutthe need for users to set the address of loT terminal devices.
|

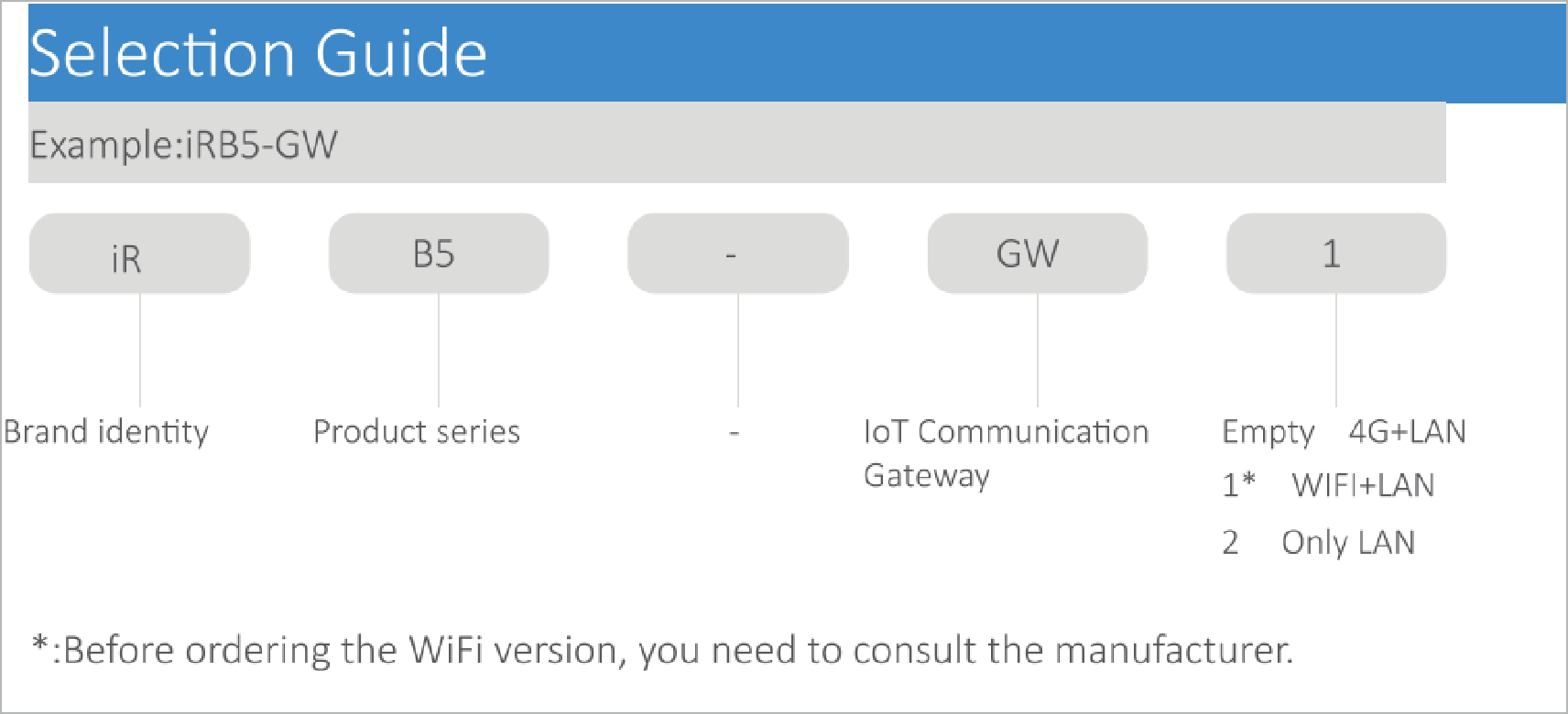

Product series |
iRB5-GW |
|
Support access devices |
iRB5 series, iRB5L series and other smart devices |
|
Main power input requirements |
AC85 ~AC265V or DC110-330V |
|
Auxiliary power input requirement |
DC12V |
|
Power consumption |
IW |
|
Elevation |
Not more than 20,000 meters |
|
Operating Temperature |
-40°C~+85°C |
|
Storage Temperature |
-40°C~+85°C |
|
Operating humidity |
Daily average not greater than 95% |
|
Monthly average relative humidity is not more than 90%, no condensation occurs |
|
|
Northbound Comm |
4G/5G/LAN/WIFI* |
|
Southbound Comm |
RS485/Bluetooth |
|
Maximum number of southbound access device(Modbus RS485) |
≤32 |
|
Maximum number of northbound access device(Bluetooth) |
≤32 |
|
Installation Mode |
Guide rail mounting |
* : Before ordering the WiFi version, you need to consult the manufacturer.
