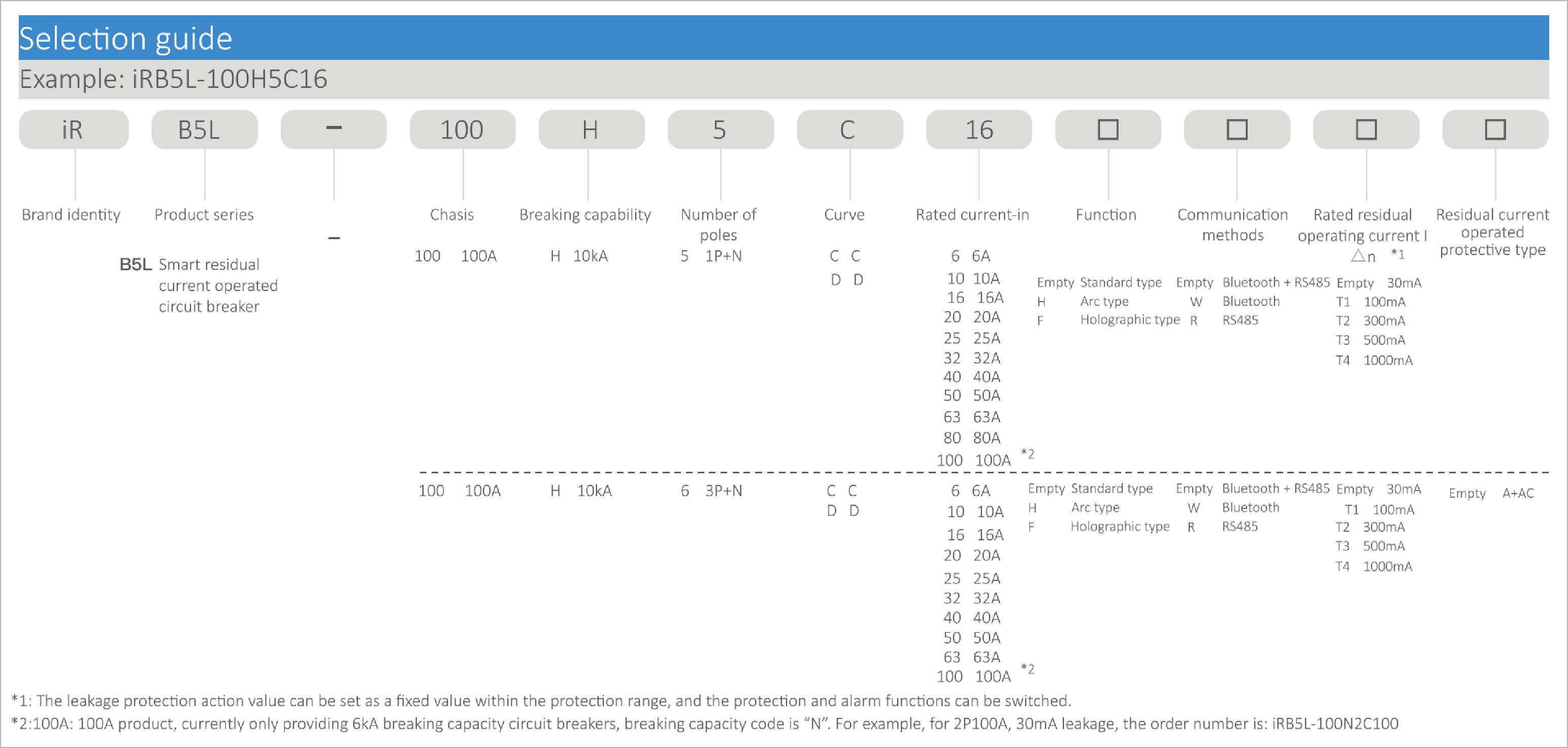

Product series |
iRB5L-100H |
|
Standards met |
IEC/EN 61009-1, GB/T 16917.1, GB/T 16917.22, CQC1149 |
|
Product certification |
CCC,CQC,TUV,CE,CB |
|
Electrical Characteristics |
|
|
Number of poles |
1P+N,3P+N |
|
Rated current In (A) |
6,10,16,20,25,32,40,50,63,80,100* |
|
Rated voltage Ue (V) |
230V(1P+N),400V(3P+N) |
|
Rated insulation voltage Ui (V) |
500 |
|
Rated operating frequency f (Hz) |
50/60 |
|
Rated impulse withstand voltage Uimp (kV) |
4 |
|
Rated short-circuit capacity Icn |
10kA |
|
Residual current circuit breaker type |
Electronic |
|
Rated residual operating current |
30mA,100mA,300mA,500mA,1000mA |
|
Rated residual current operated protective type |
Class A, Class AC |
|
Current limit grade |
|
|
Instantaneous break characteristic |
C,D |
*: When the rated current is 100A, currently only products with a breaking capacity of 6kA are available.
The breaking capacity code is N. Except for the breaking capacity Icn=6kA, other parameters are the same as those of products with a breaking capacity of 10kA.
|
Product Series |
iRB5L-100H |
|
|
Mechanical Characteristics |
||
|
Mechanical lifespan |
20,000 Times |
|
|
Electrical lifespan (In) |
10,000 Times |
|
|
Protection level |
Circuit breaker body |
IP20 |
|
Installed in the distribution box |
IP40 |
|
|
Other Characteristics |
||
|
Pollution level |
Ⅱ |
|
|
Operating temperature |
-40°C~+85°C |
|
|
Storage temperature |
-40°C~+85°C |
|
|
Wiring method |
Top entry, bottom exit |
|
|
Installation direction |
Vertical installation |
|
|
Resistance to damp and heat |
Class 2 (temperature 55°C,relative humidity 95%) |
|
|

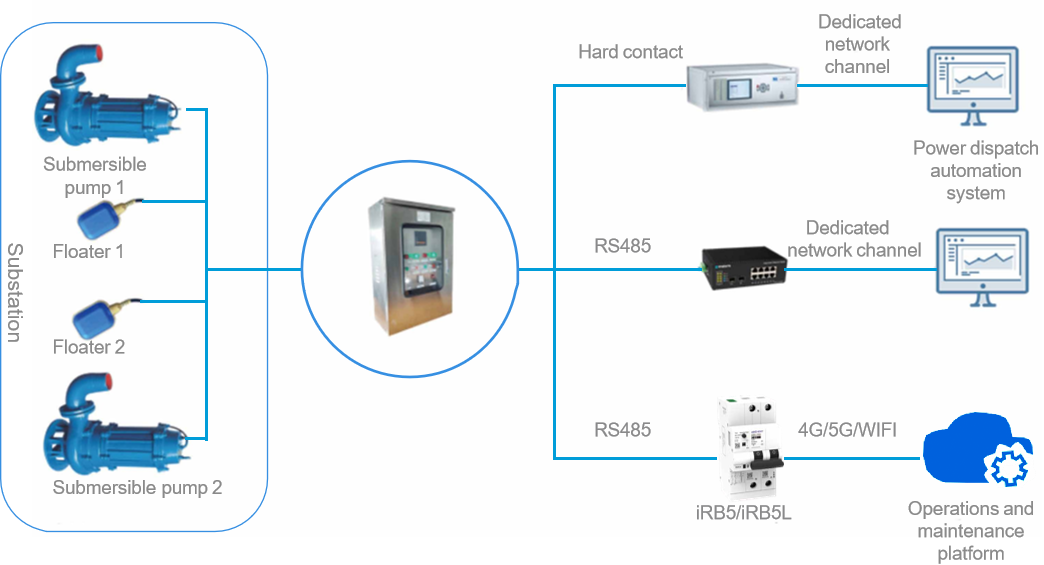

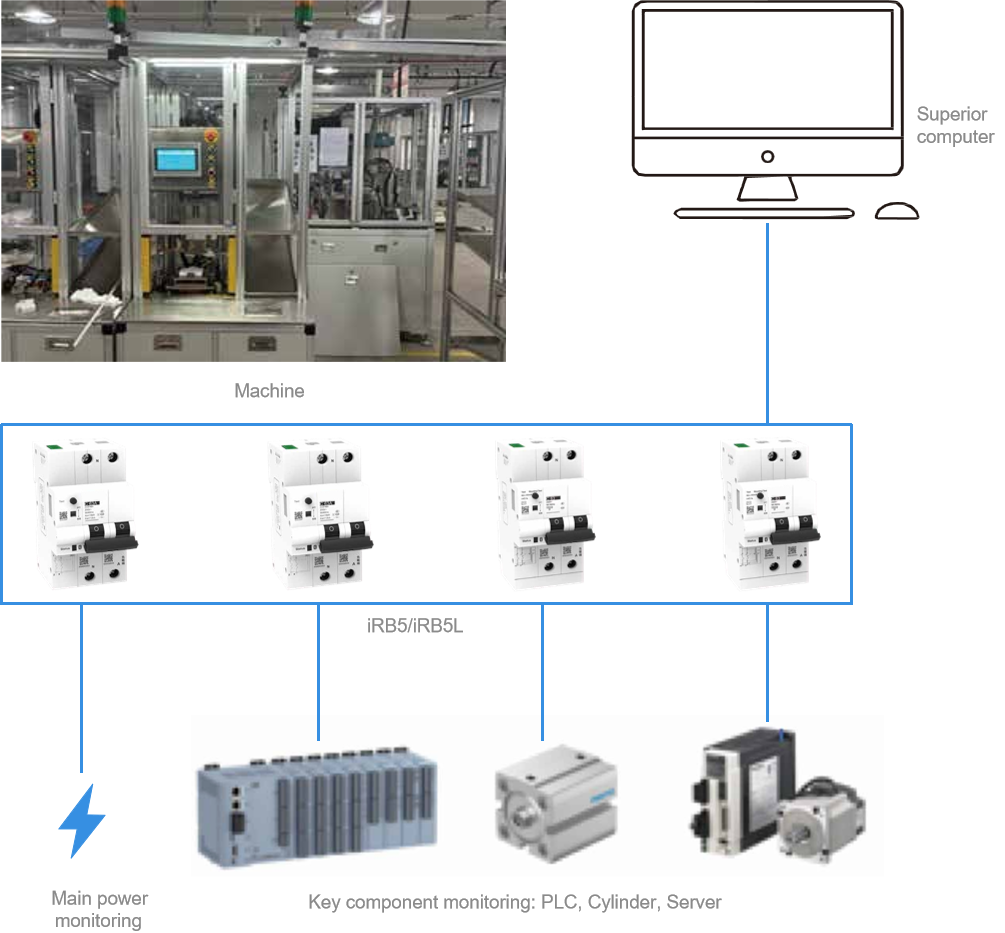

Communication interface |
RS485,Bluetooth |
|
|
Communication protocol |
Modbus,IEC60870-5-101 |
|
|

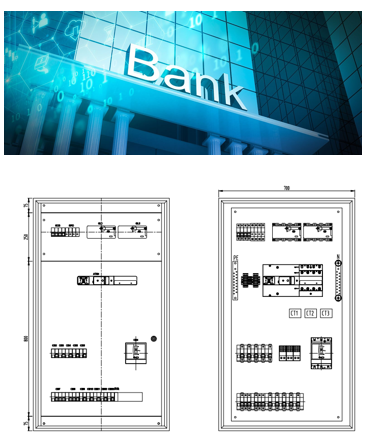

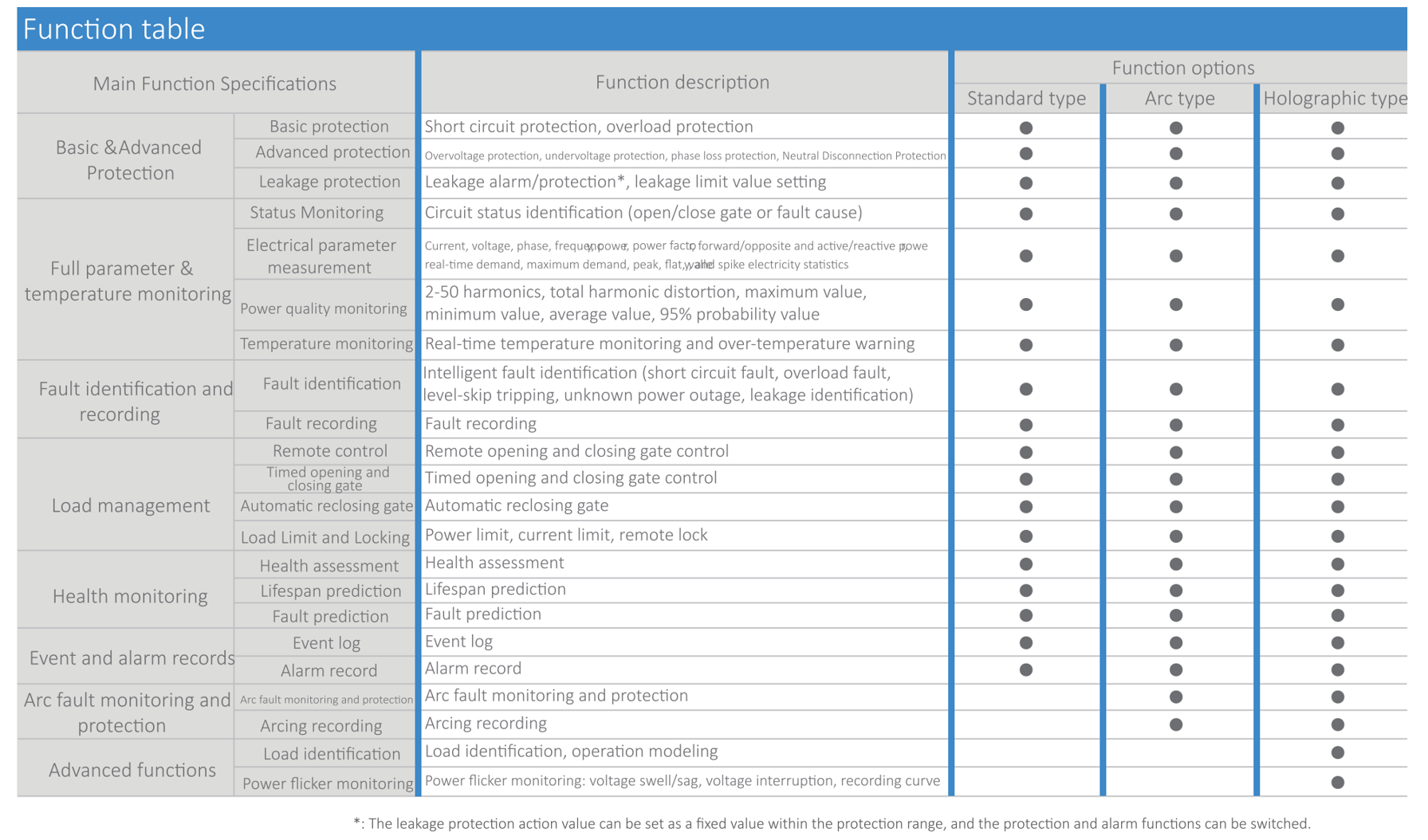

Basic & Advanced Protection & leakage protection |
● |
|
|
Full parameter & temperature monitoring |
● |
|
|
Fault identification and recording |
● |
|
|
Load management |
● |
|
|
Health monitoring |
● |
|
|
Event and alarm records |
● |
|
|
Arc fault monitoring and protection |
○ |
|
|
Advanced functions |
○ |
|
|
Wiring |
||||||
|
Current rating |
Screw |
Rated torque (Nm) |
Maximum torque (Nm) |
National Standard Rated Torque (Nm) |
Maximum wiring capacity (mm²) |
|
|
Hard wire |
Soft wire |
|||||
|
6-100A |
M6 |
3.5 |
8 |
3 |
35 |
25 |
|

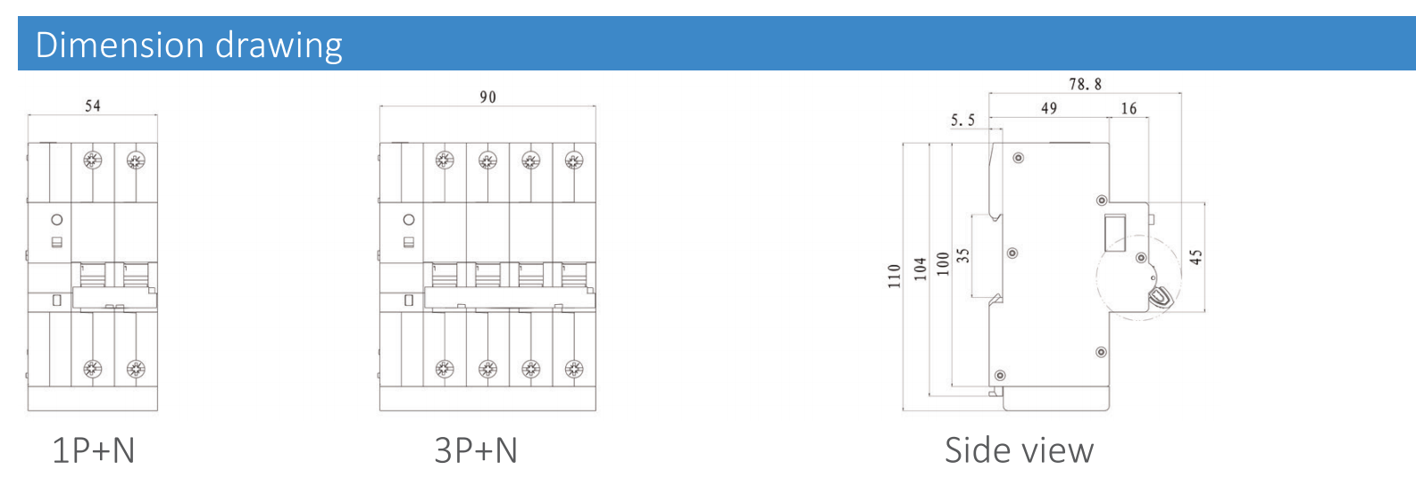

Reference weight (g) |
|
|
1P+N |
3P+N |
|
359 |
639 |
